Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Crankshaft front pulley (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Crankshaft front pulley · page 2 of 2

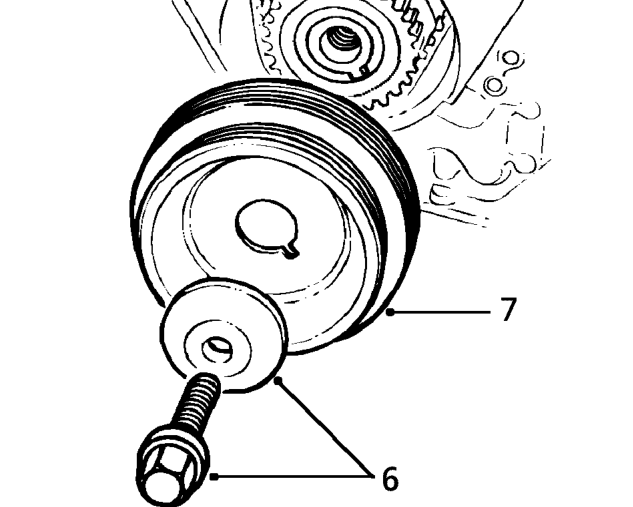

Diagram
  1. Remove bolt securing pulley to crankshaft and collect washer.
  2. Remove crankshaft pulley.

Refit

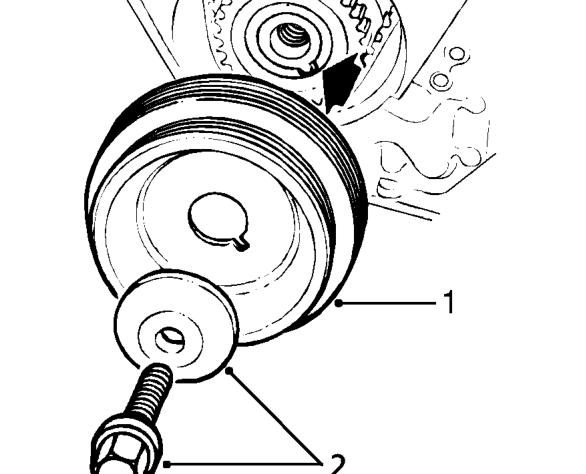

Remove crankshaft pulley.
  1. Fit crankshaft pulley to crankshaft gear ensuring that indent on pulley locates over lug on gear (arrowed in illustration).
  2. Fit washer and bolt securing crankshaft pulley to crankshaft and tighten to 205 Nm.
  3. Remove 2 bolts securing tool 18G 1571 to flywheel housing and remove tool 18G 1571.
  4. Fit starter motor. See ELECTRICAL, Repairs.
  5. Fit auxiliary drivebelt. See ELECTRICAL, Repairs.
  6. Connect battery earth lead.
