ENGINE AND AUTOMATIC GEARBOX - MODELS WITHOUT AIR CONDITIONING

Service repair no - 12.37.01.99

Remove

  1. Disconnect battery earth lead.
  2. If required: Drain engine oil. See MAINTENANCE.
  3. Fit new sealing washer to drain plug, fit drain plug and tighten to 42 Nm.
  4. Drain cooling system. See COOLING SYSTEM, Adjustments.
  5. Drain gearbox fluid. See AUTOMATIC GEARBOX - ’CVT’, Adjustments.
  6. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Release ABS fuse holder from battery tray.

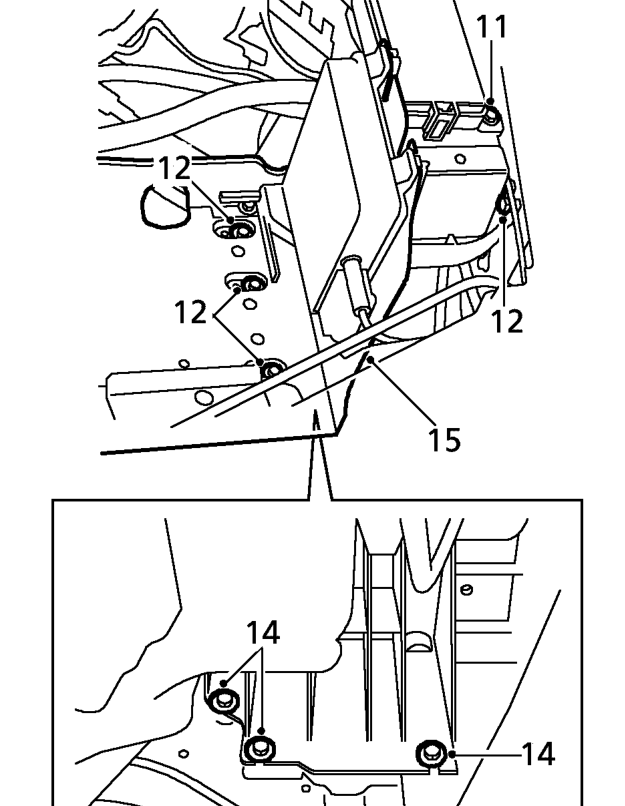

Engine and automatic gearbox - models without air conditioning – Release ABS fuse holder from battery tray.
  1. Remove bolt securing engine compartment fuse box to battery tray.
  2. Remove 4 bolts securing battery tray to body.
  3. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
  4. Loosen 3 bolts securing battery tray to body.
  5. Remove battery tray from vehicle.
  6. Release both drive shafts from gearbox as detailed in Differential oil seal. See AUTOMATIC GEARBOX - ’CVT’, Repairs.
