Engine and automatic gearbox - models without air conditioning (page 3 of 9)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement

Section

Repairs

Engine - K16Engine and automatic gearbox - models without air conditioning · page 3 of 9

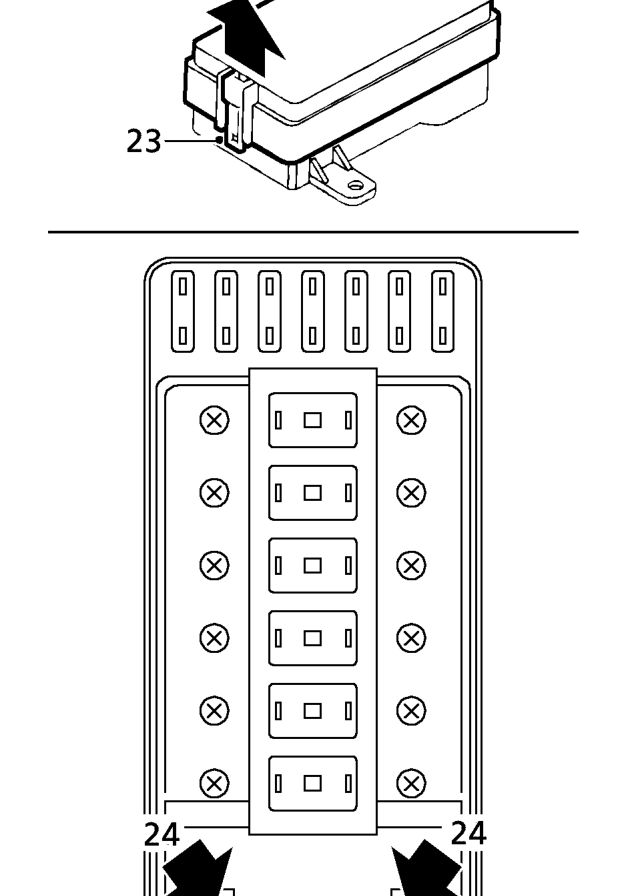

23. Release clip and remove fuse box cover.

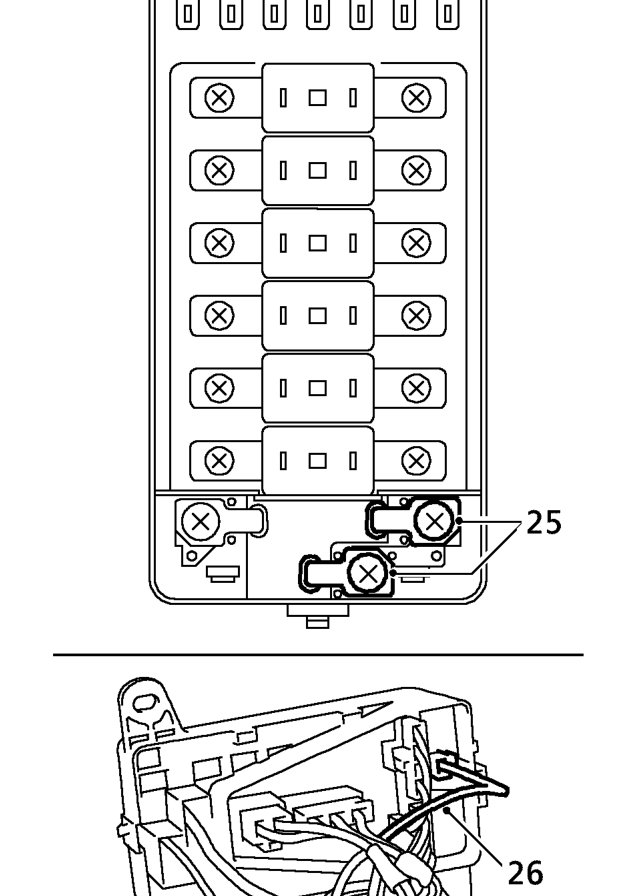

24. Depress 2 clips and remove fuse box inner cover.

25. Remove 2 screws securing positive leads to fuse box.
26. Disconnect multiplug from fuse box.

05 Engine
