Drain and refill (Automatic gearbox - CVT)

DRAIN AND REFILL

Service repair no - 44.24.02

Drain

NOTE: The fluid should be drained with the gearbox at normal operating temperature.

WARNING: Observe due care when draining gearbox fluid, as the fluid will be very hot.

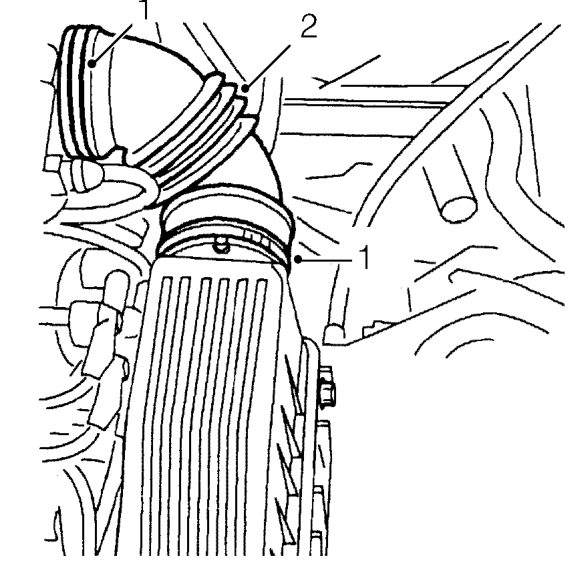

1. Release 2 clips securing hose to air cleaner and thottle body.
2. Remove air intake hose.
3. Remove dipstick.
4. Raise front of vehicle.

WARNING: Support on safety stands.

5. Position container to collect fluid from gearbox.

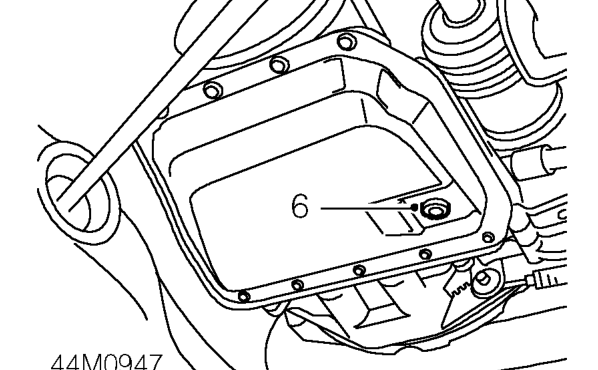

6. Remove drain plug using an 8 mm Allen key and discard sealing washer.
7. Allow fluid to drain into container.

NOTE: Approximately 1 litre of fluid is retained in the primary and secondary cylinders of the gearbox.
