Workshop Manuals Factory service & repair Rover
Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Automatic gearbox - CVT (Selector cable): Adjustments

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Adjustments › Selector cable
Automatic gearbox - CVTSelector cable

SELECTOR CABLE

Service repair no - 44.30.04

Adjust

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Move gear selector lever to position ’P’.

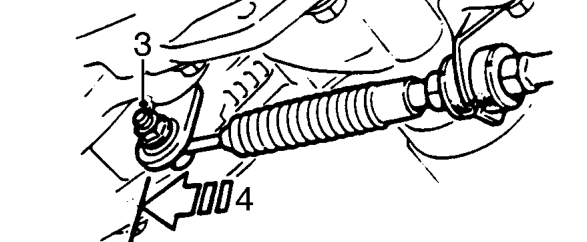

Selector cable – Move gear selector lever to position ’P’.
  1. Loosen nut securing selector cable rod to selector lever.
  2. Push selector lever fully forwards.
  3. Ensure the park mechanism is engaged by trying to rotate both front wheels.
  4. Tighten nut securing selector cable rod to selector lever to 7 Nm.
  5. Remove stand(s) and lower vehicle.
  6. Check that vehicle will only start in position ’P’ and ’N’.
  7. Check that forward drive is achieved in position ’D’ and ’L’, and reverse drive in position ’R’.
