Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Kickdown cable

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Kickdown cable
Automatic gearbox - CVTKickdown cable

KICKDOWN CABLE

Service repair no - 44.15.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove fluid pan as detailed in Fluid pan gasket. See this section.

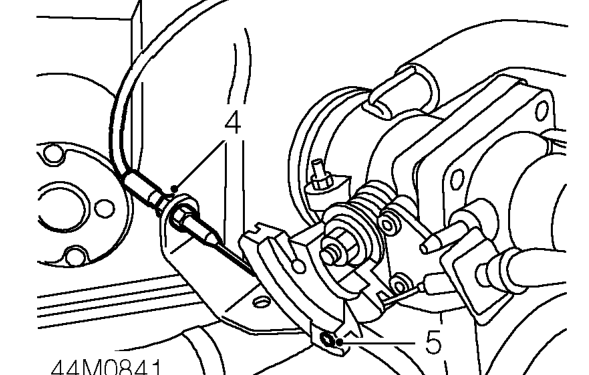

Kickdown cable – Remove fluid pan as detailed in Fluid pan gasket. See this section.
  1. Loosen nuts securing kickdown cable to abutment bracket.
  2. Release kickdown inner cable from throttle cam.
  3. Release kickdown cable from abutment bracket.

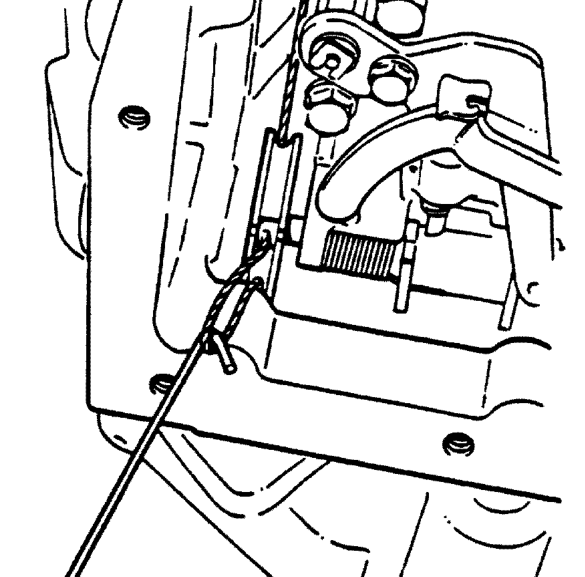

Kickdown cable – Release kickdown cable from abutment bracket.
  1. Using a piece of stiff wire with a hook on the end, release kickdown inner cable from valve cam inside gearbox.
