Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Selector cable

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Selector cable
Automatic gearbox - CVTSelector cable · page 1 of 2
Diagram

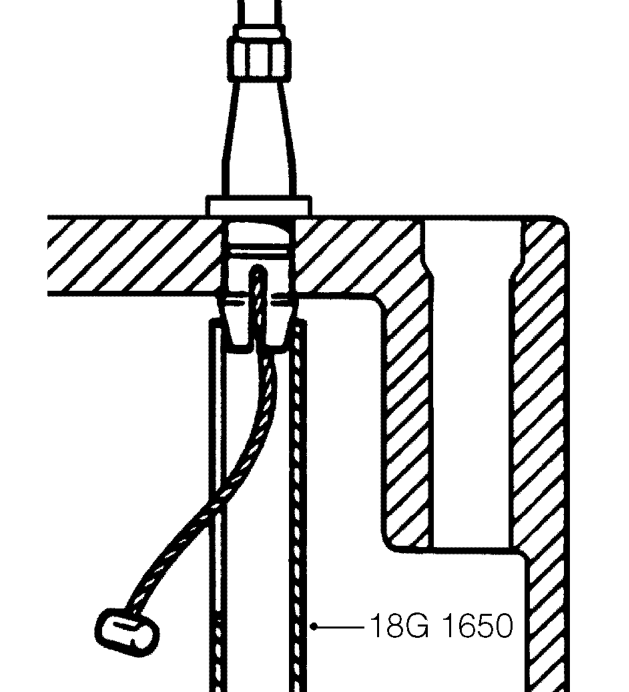

  1. Using tool 18G 1650 release kickdown outer cable from gearbox housing.
  2. Remove kickdown cable from vehicle.

Refit

  1. Position kickdown cable in vehicle.
  2. Secure kickdown outer cable to gearbox housing.
  3. Using a piece of stiff wire with a hook on the end, connect inner cable to valve cam inside gearbox.
  4. Fit kickdown cable to abutment bracket.
  5. Connect inner cable to throttle cam.
  6. Fit fluid pan as detailed in Fluid pan gasket. See this section.
  7. Fit starter motor. See ELECTRICAL, Repairs.

NOTE: The kickdown cable should be routed over the hose between the air cleaner and throttle body.

  1. Remove stand(s) and lower vehicle.
  2. Adjust throttle and kickdown cables. See Adjustments.

SELECTOR CABLE

Service repair no - 44.15.08

Remove

  1. Remove front console. See BODY, Interior trim components.
Selector cable – Remove front console. See BODY, Interior trim components.

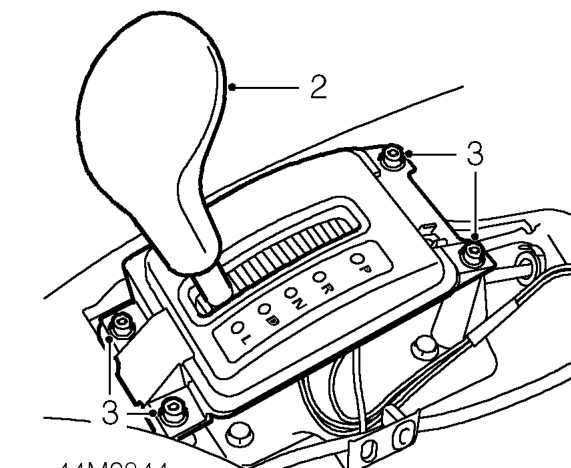

  1. Position selector lever in ’L’.
  2. Remove 4 Allen screws securing selector lever nacelle to body and collect washers.
Selector cable – Remove 4 Allen screws securing selector lever nacelle to body and collect washers.

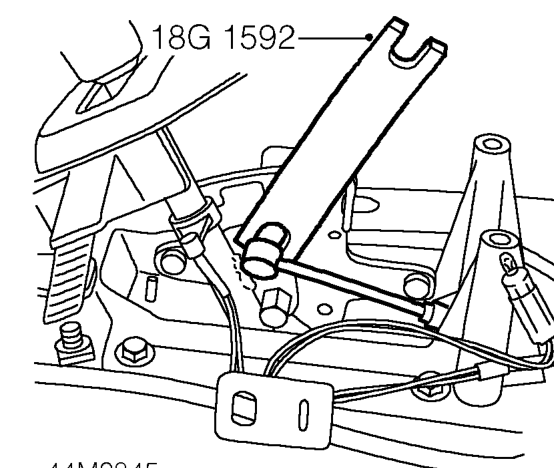

  1. Using tool 18G 1592 disconnect selector cable ball joint from selector lever.
