Fluid cooler

FLUID COOLER

Service repair no - 44.24.10

Remove

1. Remove front bumper. See BODY, Exterior fittings.
2. Position container to collect fluid loss.

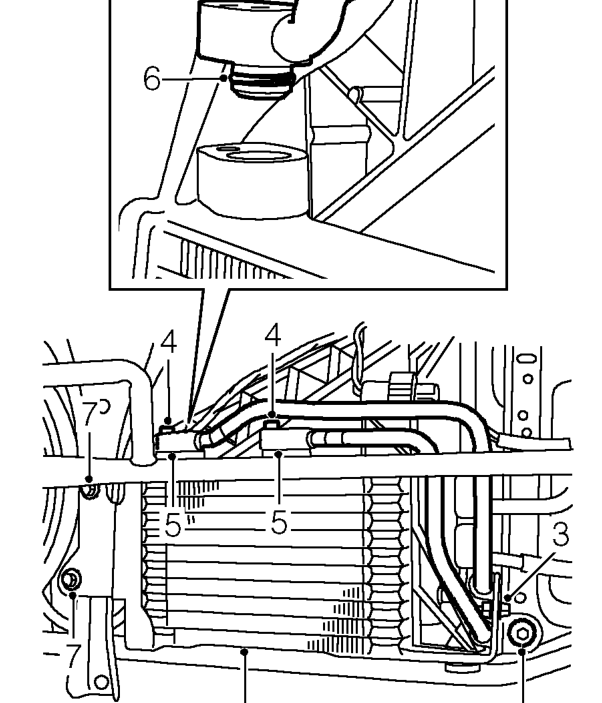

3. Remove nut and bolt securing pipe clamp to fluid cooler.
4. Remove 2 5mm Allen bolts securing feed and return pipes to fluid cooler.
5. Release feed and return pipes from fluid cooler.
6. Remove and discard ’O’ rings from pipe connections.
7. Remove 3 bolts securing fluid cooler to body.
8. Remove fluid cooler and collect spacer.

Refit

1. Position fluid cooler and spacer to body, fit bolts and tighten to 10 Nm.
2. Clean feed and return pipe unions.
3. Lubricate and fit new ’O’ rings to feed and return pipe connections.
4. Connect feed and return pipes to fluid cooler.
5. Fit Allen bolts securing feed and return pipes to fluid cooler and tighten to 5 Nm.
6. Position pipe clamp, fit nut and bolt and tighten to 10 Nm.
7. Fit front bumper. See BODY, Exterior fittings.
8. Top-up gearbox fluid. See Adjustments.
