Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Input shaft seal

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Input shaft seal
Automatic gearbox - CVTInput shaft seal

INPUT SHAFT SEAL

Service repair no - 44.20.17

Remove

  1. Remove gearbox assembly. See this section.

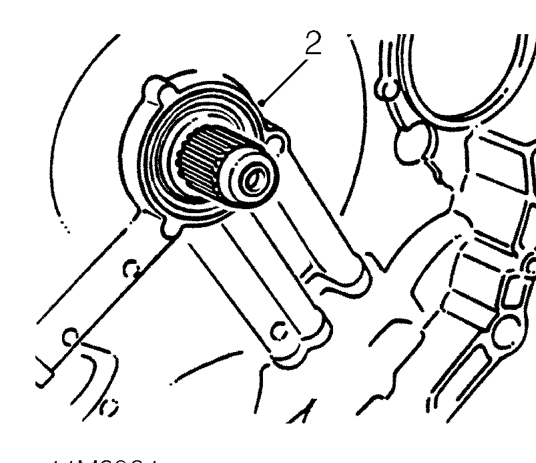

Input shaft seal – Remove gearbox assembly. See this section.
  1. Remove and discard input shaft seal using suitable lever.

Refit

  1. Clean seal housing and input shaft.
  2. Lubricate new ’O’ ring with gearbox fluid and fit onto input shaft.

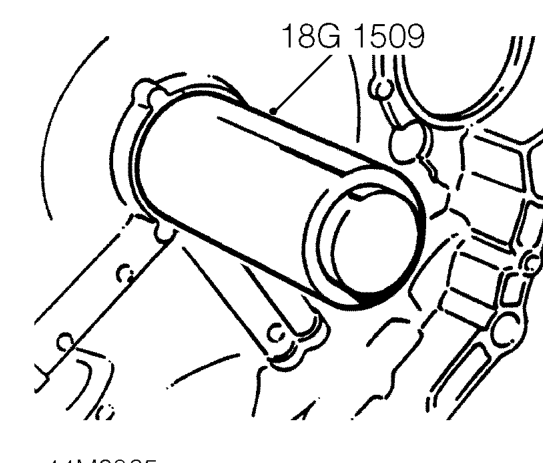

Input shaft seal – Lubricate new ’O’ ring with gearbox fluid and fit onto input shaft.
  1. Push seal into place using tool 18G 1509.
  2. Refit gearbox assembly. See this section.
