Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Primary cover

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Primary cover
Automatic gearbox - CVTPrimary cover · page 1 of 5

PRIMARY COVER

Service repair no - 44.20.28

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH front road wheel.
  2. Clean area around primary cover.
  3. Position container to collect fluid loss.

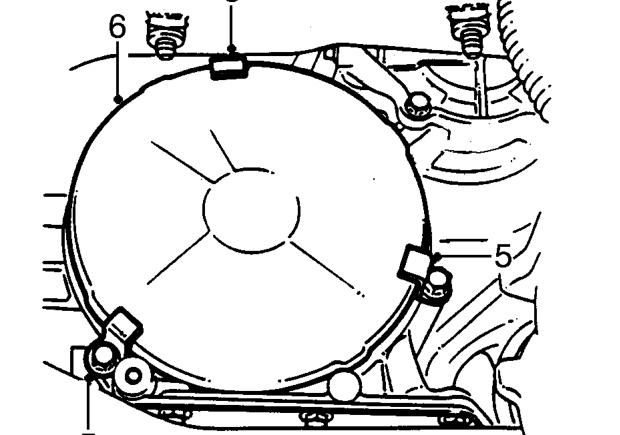

Primary cover – Position container to collect fluid loss.
  1. Remove 3 bolts and brackets securing primary cover to gearbox.
  2. Remove primary cover from gearbox.

Refit

  1. Clean primary cover and mating face of gearbox.
  2. Fit primary cover to gearbox.
  3. Fit primary cover bolts and brackets and tighten to 10 Nm.
  4. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  5. Remove stand(s) and lower vehicle.
  6. Top-up gearbox fluid. See Adjustments.

SECONDARY COVER SEALS

Service repair no - 44.20.33

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH front road wheel.
Secondary cover seals – Remove LH front road wheel.

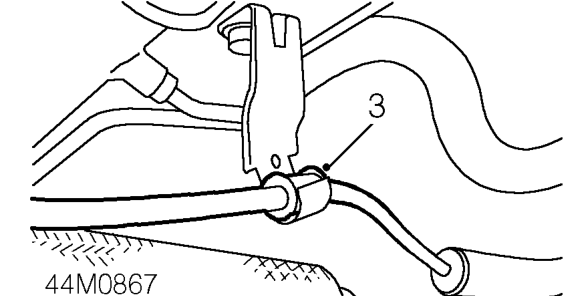

  1. Release selector cable from bracket on rear beam.
Secondary cover seals – Release selector cable from bracket on rear beam.

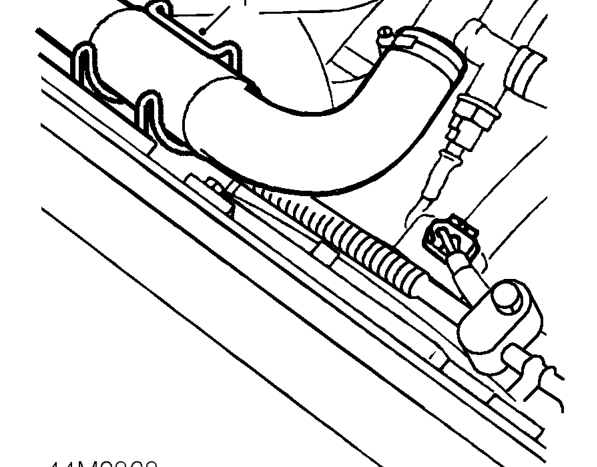

  1. Release radiator top hose from clip on radiator cooling fan.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
