Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Primary cover (page 4 of 5)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Automatic gearbox - CVTPrimary cover · page 4 of 5
Diagram

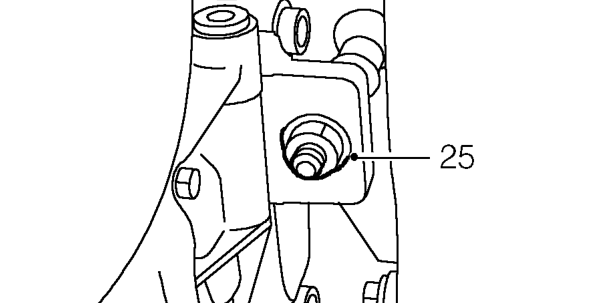

  1. Remove and discard nut securing gearbox mounting bracket to engine mounting.
  2. Adjust tool 18G 1598 to tilt engine with gearbox as low as possible.
Adjust tool 18G 1598 to tilt engine with gearbox as low as possible.

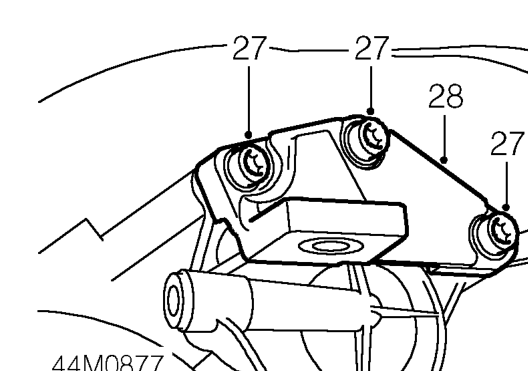

  1. Remove 3 Tx55 Torx bolts securing mounting bracket to gearbox.
  2. Remove mounting bracket from gearbox.
Remove mounting bracket from gearbox.

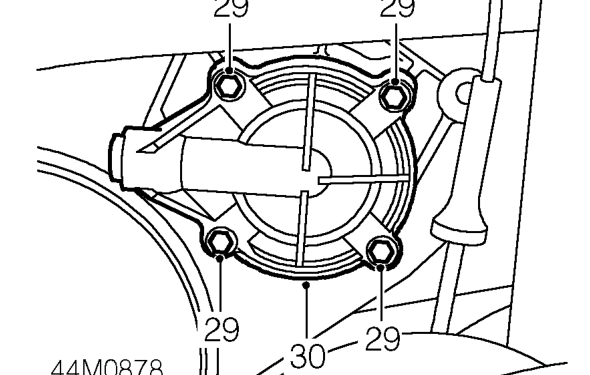

  1. Remove 4 bolts securing secondary cover to gearbox.
  2. Remove secondary cover.
Remove secondary cover.

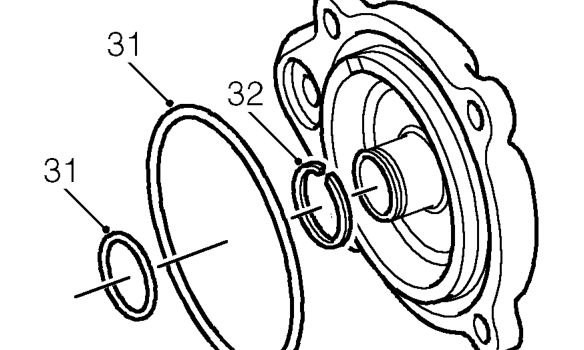

  1. Remove and discard 2 ’O’ rings from cover.
  2. Remove and discard split ring.
