Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Fluid cooler feed hose/pipe

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Fluid cooler feed hose/pipe
Automatic gearbox - CVTFluid cooler feed hose/pipe

FLUID COOLER FEED HOSE/PIPE

Service repair no - 44.24.13

Remove

  1. Remove front bumper. See BODY, Exterior fittings.
  2. Position container to collect fluid loss.

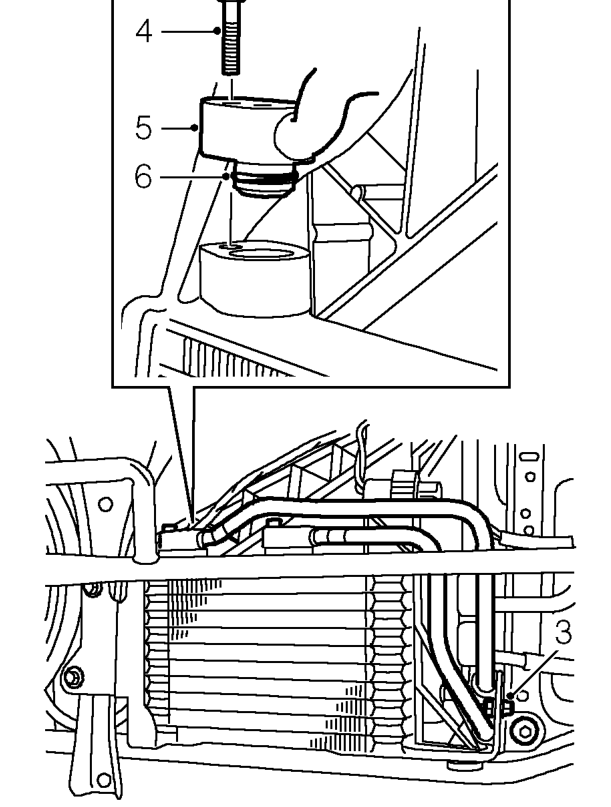

Fluid cooler feed hose/pipe – Position container to collect fluid loss.
  1. Remove nut and bolt securing pipe clamp to fluid cooler.
  2. Remove 5mm Allen bolt securing pipe to fluid cooler.
  3. Release pipe connection from fluid cooler.
  4. Remove and discard ’O’ ring from pipe connection.

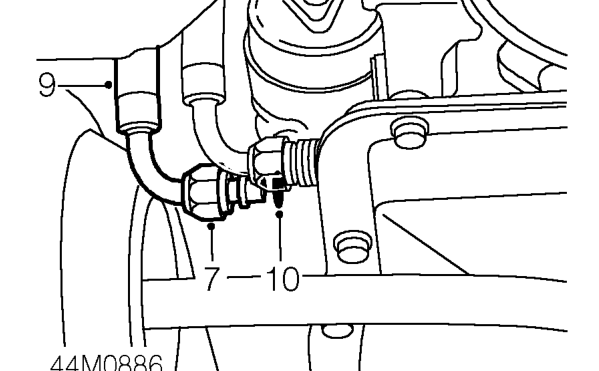

Fluid cooler feed hose/pipe – Remove and discard ’O’ ring from pipe connection.
  1. Loosen union securing fluid cooler feed hose to gearbox.
  2. Disconnect feed hose union from gearbox.
  3. Remove fluid cooler feed hose.
  4. Remove and discard ’O’ ring from union.

Refit

  1. Clean unions on fluid cooler, feed hose and gearbox.
  2. Lubricate and fit new ’O’ rings to fluid cooler feed hose.
  3. Position fluid cooler feed hose.
  4. Connect feed hose to gearbox and tighten union to 37 Nm.
  5. Connect feed hose to fluid cooler, fit Allen bolt and tighten to 5 Nm.
  6. Position pipe clamp, fit nut and bolt and tighten to 10 Nm.
  7. Fit front bumper. See BODY, Exterior fittings.
  8. Top-up gearbox fluid. See Adjustments.
