Automatic gearbox - CVTSelector shaft seal

SELECTOR SHAFT SEAL

Service repair no - 44.15.34

Remove

  1. Remove sump as detailed in Sump gasket. See ENGINE - ’K16’, Repairs.
  2. Move gear selector lever to position ’P’.
Selector shaft seal – Move gear selector lever to position ’P’.

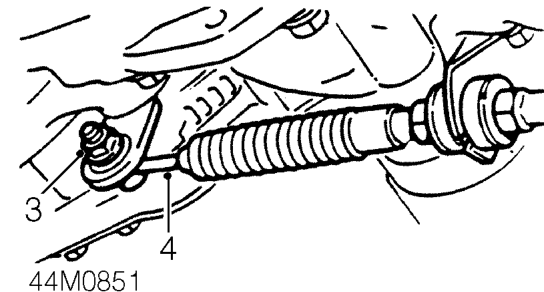

  1. Remove nut securing selector cable rod to selector lever.
  2. Release selector cable rod from selector lever.
Selector shaft seal – Release selector cable rod from selector lever.

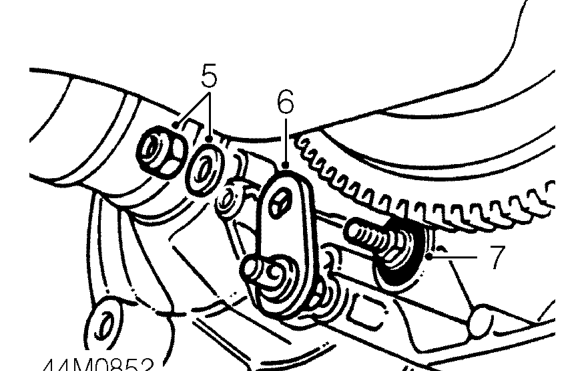

  1. Remove nut and washer securing selector lever to selector shaft.
  2. Release and remove lever from selector shaft.
  3. Remove and discard selector shaft seal.

Refit

  1. Clean selector shaft and seal register.
  2. Lubricate oil seal with gearbox fluid and fit over selector shaft.
  3. Push oil seal into place in gearbox casing using suitable size socket.
  4. Clean selector lever.
  5. Fit nut securing selector lever to selector shaft and tighten to 8 Nm.
  6. Connect selector cable rod to selector lever but DO NOT tighten nut.
  7. Fit sump as detailed in Sump gasket. See ENGINE - ’K16’, Repairs.
  8. Top-up gearbox fluid. See Adjustments.
  9. Adjust selector cable. See Adjustments.
