AUTOMATIC GEARBOX

Service repair no - 44.20.02.99

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Automatic gearbox – Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove bolt securing engine compartment fuse box to battery tray.
  2. Remove 4 bolts securing battery tray to body.
  3. Remove bolt securing engine compartment fuse box to body and position fuse box aside.
  4. Loosen 3 bolts securing battery tray to body.
  5. Remove battery tray from vehicle.
Automatic gearbox – Remove battery tray from vehicle.
  1. Disconnect multiplug from vehicle speed sensor.

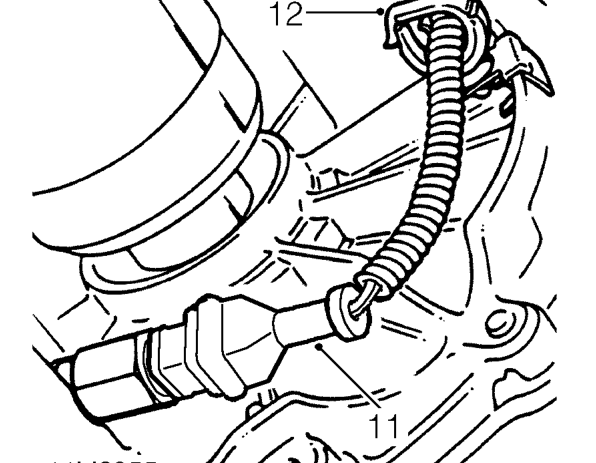

Automatic gearbox – Disconnect multiplug from vehicle speed sensor.
  1. Disconnect multiplug from starter inhibitor/reverse switch.
  2. Release clip securing harness to gearbox.
