Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Automatic gearbox (page 2 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Automatic gearbox - CVTAutomatic gearbox · page 2 of 4
Diagram

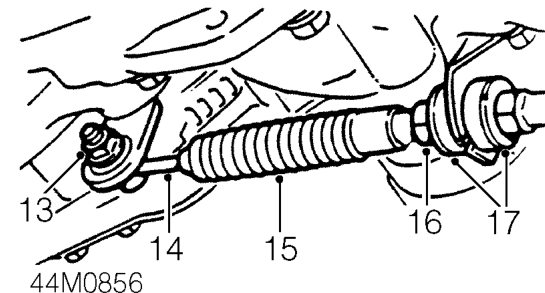

  1. Remove nut securing selector cable rod to selector lever.
  2. Release selector cable rod from selector lever.
  3. Slide rubber sleeving back from lock nut on selector cable rod.
  4. Loosen lock nut securing selector cable to abutment bracket.
  5. Seperate anti-vibration rubbers and release cable from abutment bracket.
Seperate anti-vibration rubbers and release cable from abutment bracket.

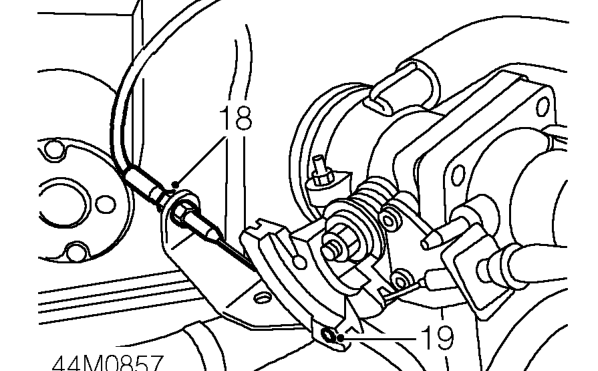

  1. Loosen nuts securing kickdown cable to abutment bracket.
  2. Release kickdown inner cable from throttle cam.
  3. Release kickdown cable from abutment bracket.
  4. Drain gearbox fluid. See Adjustments.
Drain gearbox fluid. See Adjustments.

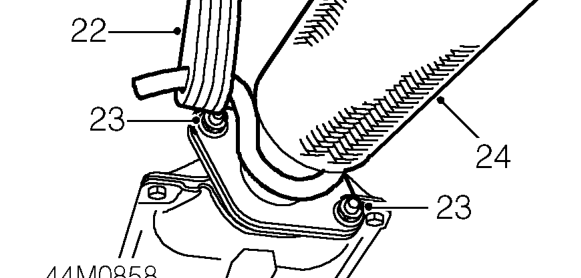

  1. Disconnect rubber mounting securing front pipe to body.
  2. Remove 2 nuts securing front pipe to catalytic converter.
  3. Disconnect front pipe from catalytic converter and remove flange gasket.
Disconnect front pipe from catalytic converter and remove flange gasket.

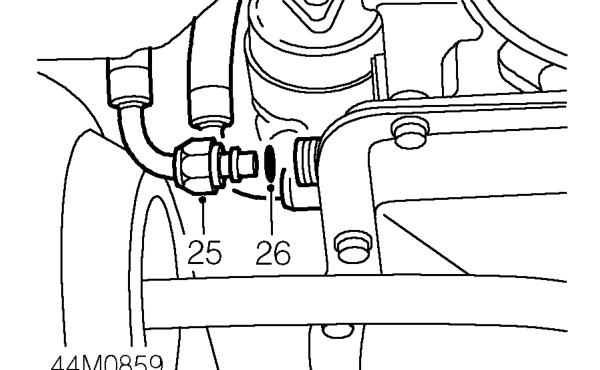

  1. Loosen unions and disconnect 2 fluid cooler hoses from gearbox.
  2. Remove and discard ’O’ rings from fluid cooler hose unions.

CAUTION: Plug the connections.

  1. Release both drive shafts from gearbox as detailed in Differential oil seal. See this section.
