Automatic gearbox - CVTModels with ABS · page 1 of 3

Models with ABS

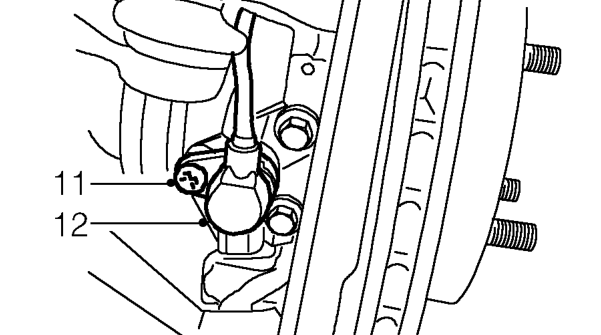

Models with abs
  1. Remove Tx30 Torx bolt securing ABS sensor to front hub.
  2. Release ABS sensor from front hub and position aside.

All models

All models – Release ABS sensor from front hub and position aside.

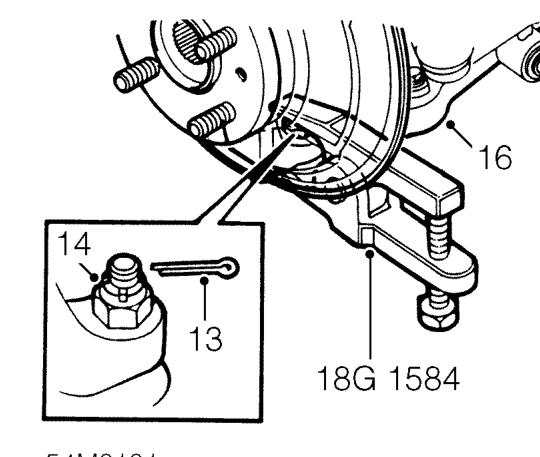

  1. Remove and discard split pin from castellated nut securing front hub to suspension lower arm.
  2. Loosen castellated nut securing front hub to suspension lower arm, until flush with the end of the joint. If necessary, apply penetrating oil to joint.
  3. Break taper joint using tool 18G 1584 .

CAUTION: Be careful not to damage the rubber boot on lower ball joint.

  1. Remove nut from lower ball joint and release suspension lower arm from front hub.
All models – Remove nut from lower ball joint and release suspension lower arm from front hub.

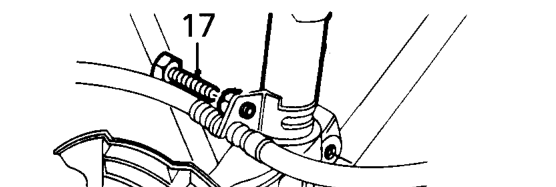

  1. Remove pinch bolt securing front hub to damper.
