Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement15 · Automatic gearbox - CVT
15 · Transmission

Fluid pan gasket

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Fluid pan gasket
Automatic gearbox - CVTFluid pan gasket

FLUID PAN GASKET

Service repair no - 44.24.04

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Drain gearbox fluid. See Adjustments.

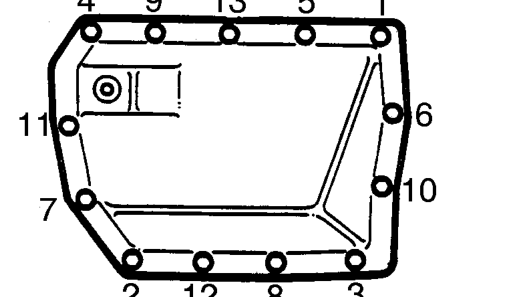

Fluid pan gasket – Drain gearbox fluid. See Adjustments.
  1. Working in the sequence illustrated, loosen then remove 13 bolts securing fluid pan to gearbox.
  2. Release gasket from gearbox, remove fluid pan and discard gasket.

Refit

  1. Clean mating faces of fluid pan and gearbox.
  2. Lubricate new gasket with gearbox fluid and fit to fluid pan.

CAUTION: Do not apply adheisive to gasket.

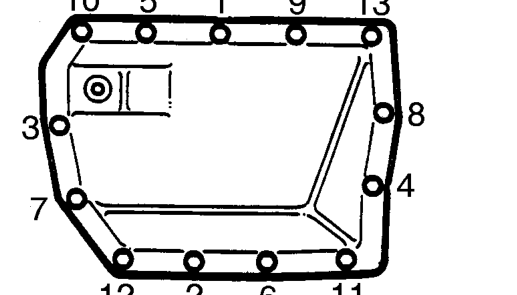

Fluid pan gasket – Lubricate new gasket with gearbox fluid and fit to fluid pan.
  1. Fit 13 bolts securing fluid pan to gearbox and working in the sequence illustrated, tighten to 10 Nm.
  2. Refill gearbox with fluid. See Adjustments.
  3. Remove stand(s) and lower vehicle.
