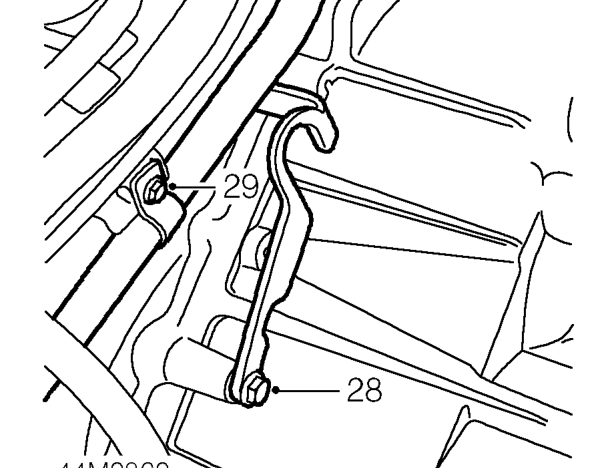

28. Fit bolt securing lifting bracket to gearbox.
29. Models with air conditioning: Remove bolt securing air conditioning pipe to mounting bracket.

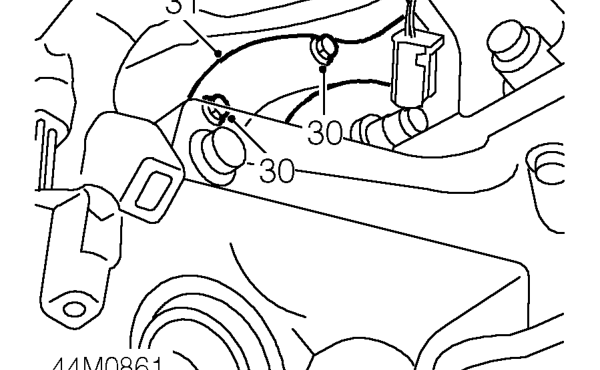

30. Remove 2 bolts securing flywheel rear cover plate to flywheel housing.
31. Remove flywheel rear cover plate.
32. Fit wooden block to jack and position jack to support engine.

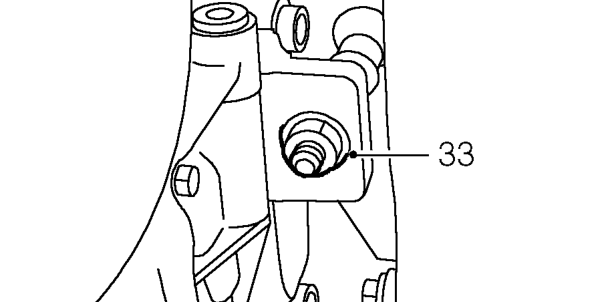

33. Remove and discard nut securing gearbox mounting bracket to engine LH mounting.
34. Connect suitable lifting equipment to mounting bracket on gearbox.
35. Take weight of gearbox with lifting equipment.

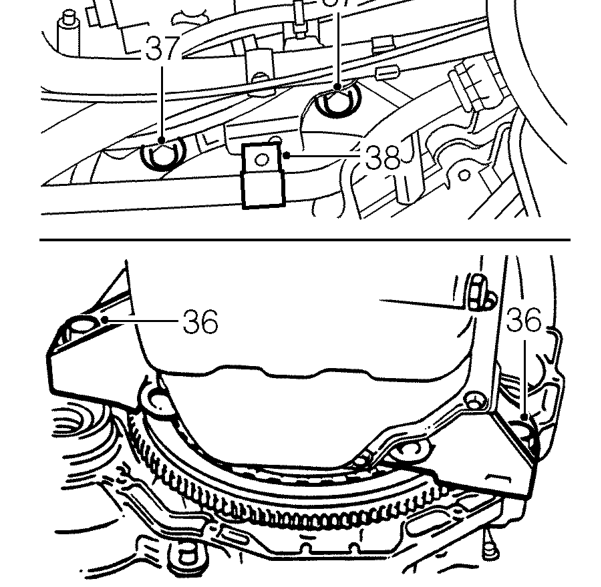

36. Remove 2 lower bolts securing gearbox to engine.
37. Remove 2 upper bolts securing gearbox to engine.
38. Models with air conditioning: Collect mounting bracket.
39. With assistance, release gearbox from engine.
40. Manoeuvre gearbox from engine and lower from vehicle.
41. Disconnect lifting equipment from gearbox and remove gearbox from beneath vehicle.
