Selector cable (page 2 of 2)

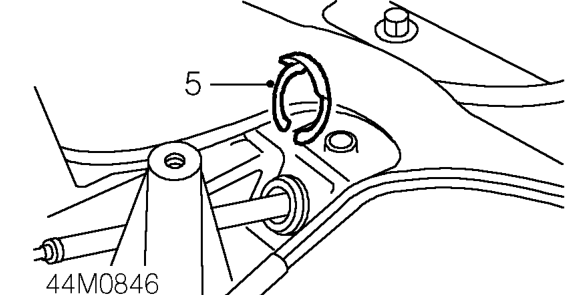

5. Remove ’C’ clip securing selector cable to body.
6. Raise front of vehicle.

WARNING: Support on safety stands.

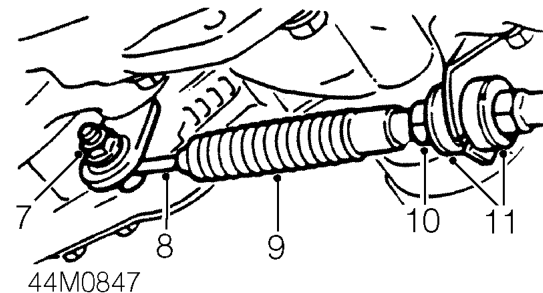

7. Remove nut securing selector cable rod to lever.
8. Release selector cable rod from selector lever.
9. Slide rubber sleeving back from lock nut on selector cable rod.
10. Loosen lock nut securing selector cable to abutment bracket.
11. Seperate anti-vibration rubbers and release cable from abutment bracket.

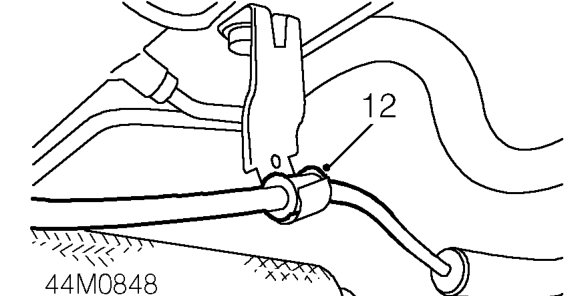

12. Release selector cable from bracket on rear beam.
13. Remove selector cable from vehicle.

Refit

1. Position selector cable in vehicle and secure to bracket on rear beam.
2. Fit selector cable to abutment bracket and push anti-vibration dampers into position.
3. Tighten selector cable lock nut to abutment bracket.
4. Slide selector cable rod rubber sleeving into position.
5. Connect selector cable rod to selector lever but DO NOT tighten nut.
6. Fit ’C’ clip securing selector cable to body.
7. Connect selector cable ball joint to selector lever.
8. Position selector lever nacelle, fit and tighten Allen screws with washers fitted.

CAUTION: Do not over tighten screws.

9. Fit front console. See BODY, Interior trim components.
10. Adjust selector cable. See Adjustments.
