Rear console

REAR CONSOLE

Service repair no - 76.25.04

Remove

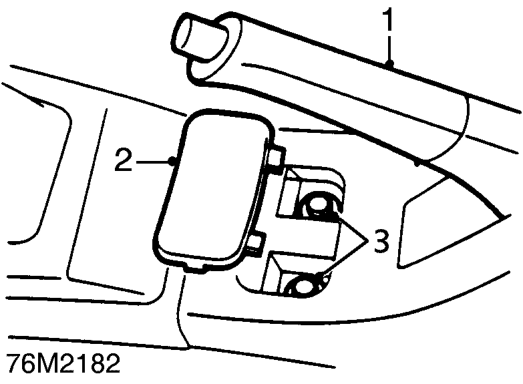

1. Apply handbrake to ON position.
2. Remove cover from rear console.
3. Remove 2 bolts securing front of rear console to body.

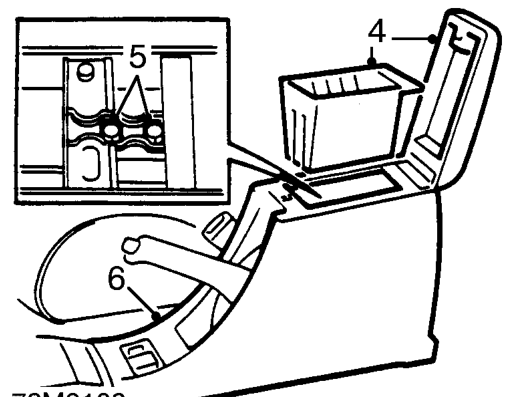

4. Open console lid and remove storage box from console.
5. Remove 2 bolts securing rear of console to handbrake cable abutment bracket.
6. Slide console rearwards to release from abutment bracket and front console.
7. Raise front of console and lift over handbrake lever.

Do not carry out further dismantling if component is removed for access only.

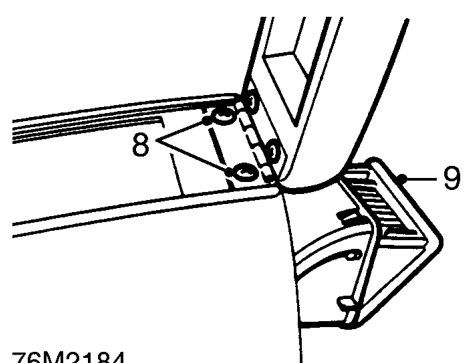

8. Remove 2 screws securing console lid to console and remove lid.
9. Release ashtray from console.
10. Fit ashtray to console and engage clips.
11. Position console lid to console and secure with screws.

Refit

1. Fit console over handbrake lever and locate on handbrake cable abutment bracket and front console.
2. Fit and tighten screws securing rear of console to handbrake cable abutment bracket.
3. Fit bolts securing front of console to body and tighten to 10 Nm.
4. Fit bolt cover to console.
5. Fit storage box and engage clips.
