Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Cylinder head gasket - models without air conditioning (page 5 of 7)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Cylinder head gasket - models without air conditioning · page 5 of 7
Diagram

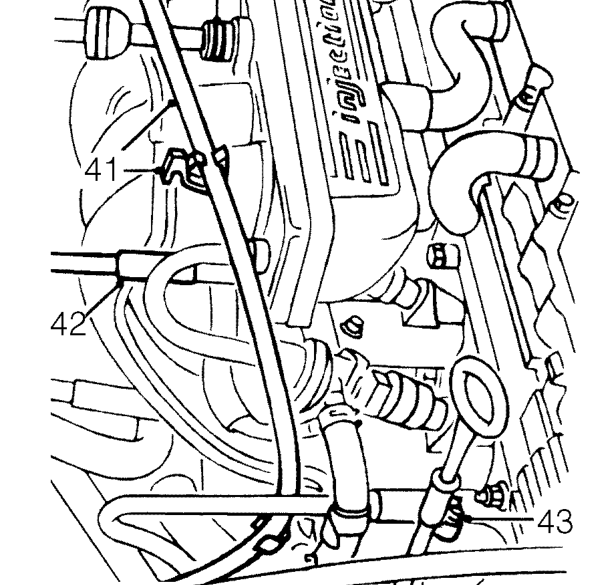

  1. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.
  2. Release throttle cable from clip on inlet manifold.
  3. Disconnect vacuum hose from inlet manifold.
  4. Loosen clip and disconnect expansion tank hose from inlet manifold.
  5. Remove camshaft cover. See this section.
Remove camshaft cover. See this section.

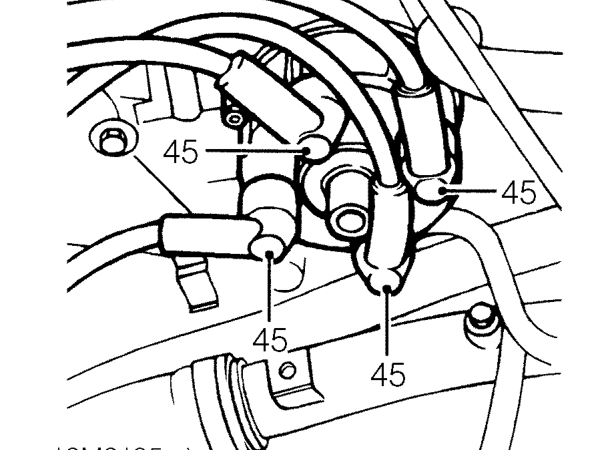

  1. Disconnect h.t. leads from distributor cap.
  2. Remove h.t. leads.
Remove h.t. leads.

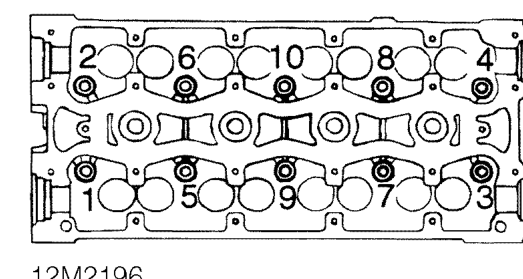

  1. Working in the sequence shown, loosen 10 cylinder head to oil rail bolts.
  2. Remove cylinder head bolts and store in fitted order.
  3. Using assistance, remove cylinder head assembly from cylinder block.

CAUTION: Take care not to damage heated oxygen sensor when removing cylinder head.

Using assistance, remove cylinder head assembly from cylinder block.

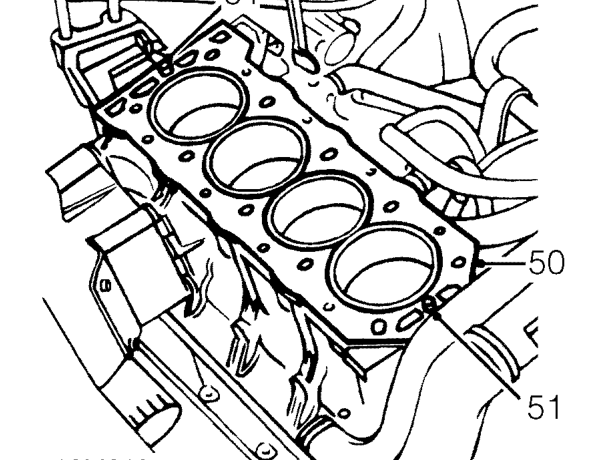

  1. Remove and discard cylinder head gasket from cylinder block.
  2. Remove 2 location dowels from cylinder block.
