Engine - K16Engine and gearbox - models with air conditioning · page 2 of 11

19. Disconnect clutch cable from clutch release lever.

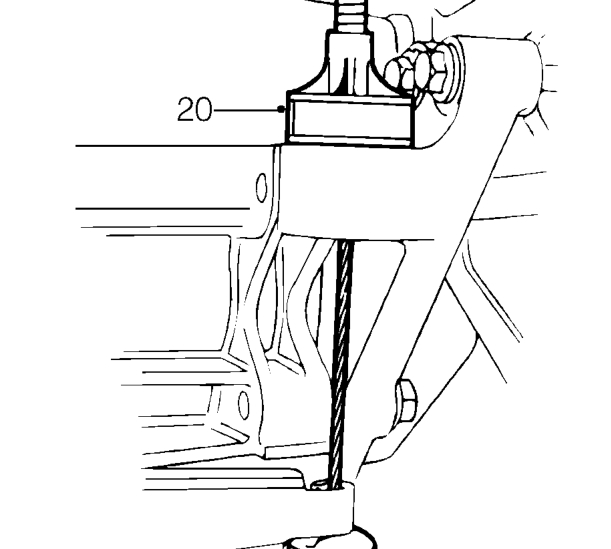

20. Release clutch cable from abutment bracket on gearbox and position aside.
21. Release both drive shafts from gearbox as detailed in Differential oil seal. See MANUAL GEARBOX - ’R65’, Repairs.

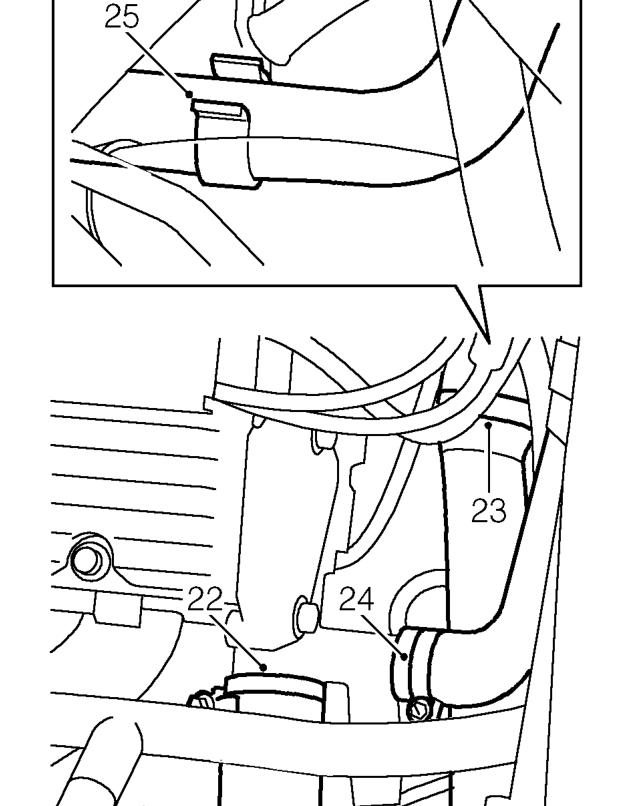

22. Loosen clip and disconnect radiator top hose from coolant outlet elbow.
23. Loosen clip and disconnect radiator bottom hose from coolant rail.
24. Loosen clip and disconnect heater hose from coolant outlet elbow.
25. Release heater hose from clip on coolant rail and position aside.
