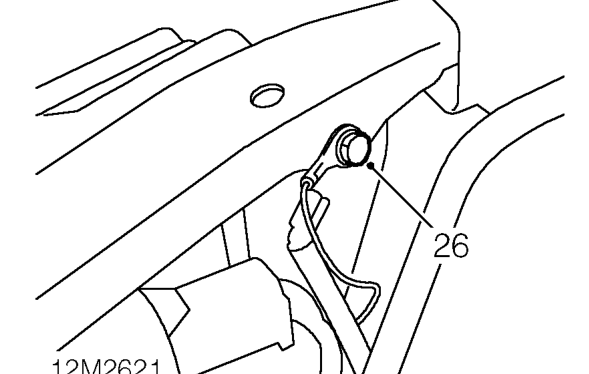

26. Remove bolt securing earth lead to bonnet locking platform.

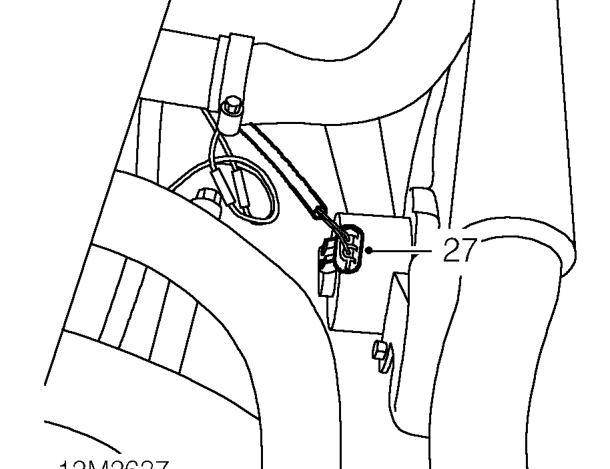

27. Disconnect multiplug from radiator cooling fan.

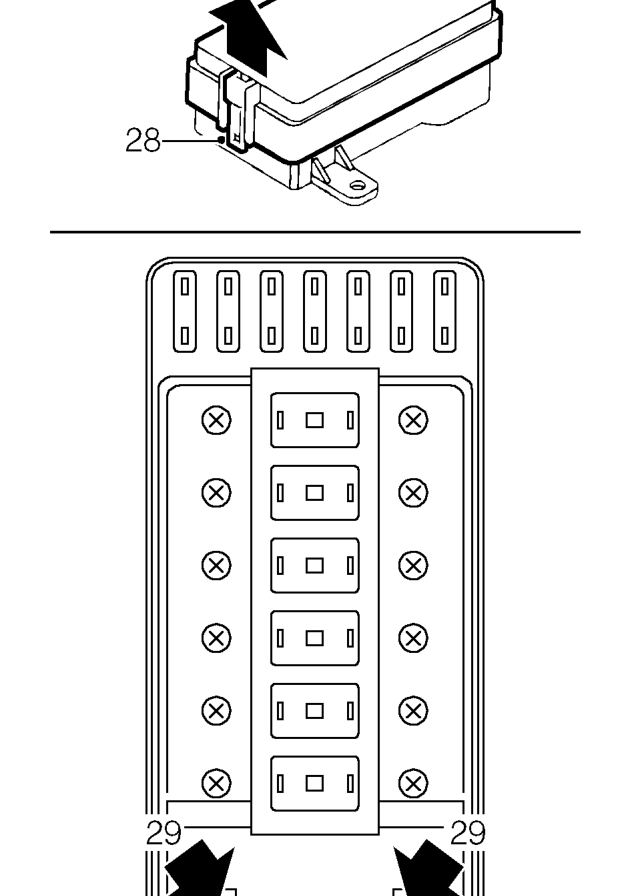

28. Release clip and remove fuse box cover.
29. Depress 2 clips and remove fuse box inner cover.
