Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and gearbox - models with air conditioning (page 4 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and gearbox - models with air conditioning · page 4 of 11
Diagram

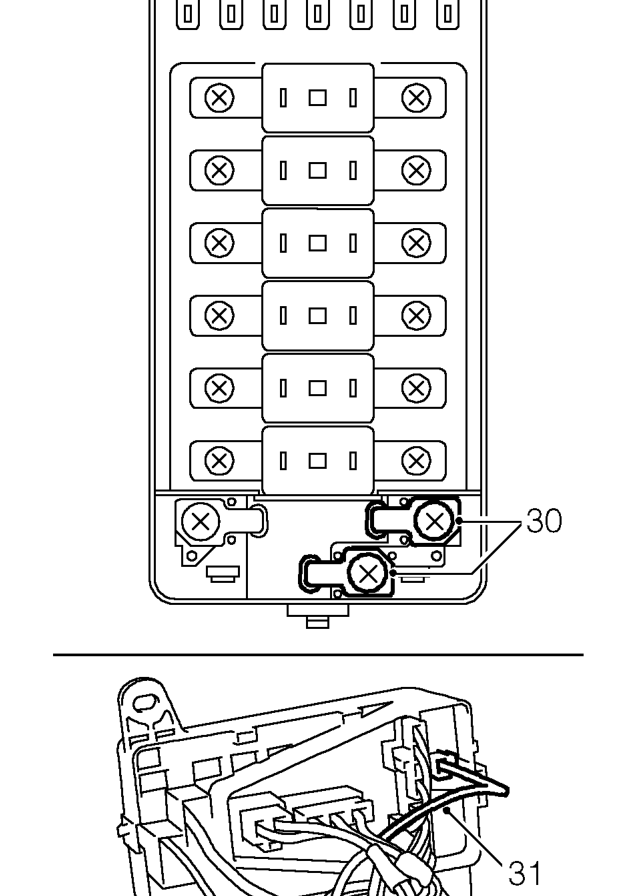

  1. Remove 2 screws securing positive leads to fuse box.
  2. Disconnect multiplug from fuse box.

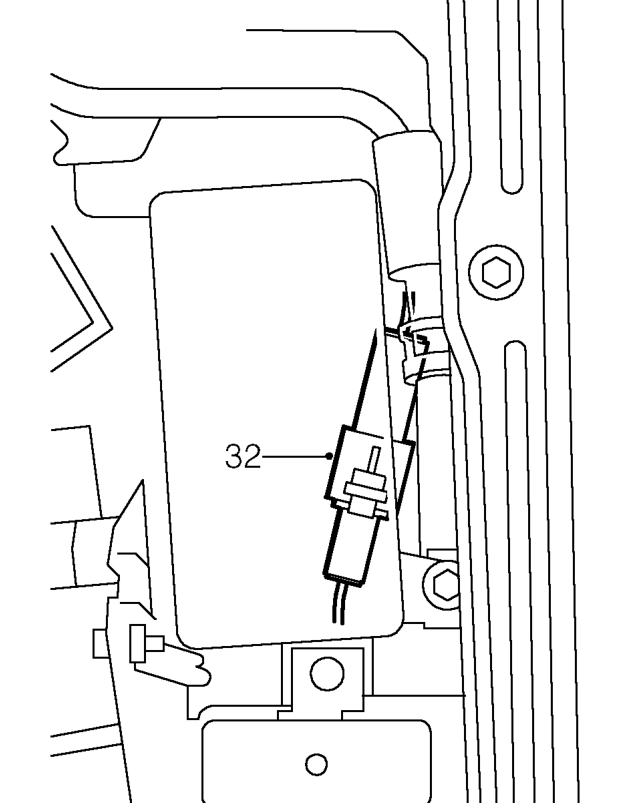

Disconnect multiplug from fuse box.
  1. Disconnect engine harness to main harness connector.
  2. Lay engine harness across engine to avoid it being caught when the engine is removed.
  3. Remove evaporative emission canister. See EMISSION CONTROL, Repairs.
  4. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  5. Position absorbent cloth around fuel filter outlet union.
