EVAPORATIVE EMISSION CANISTER

Service repair no - 17.15.13

Remove

  1. Disconnect battery earth lead.

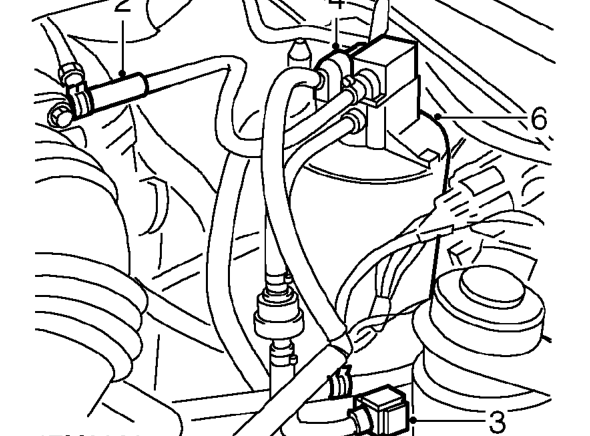

Evaporative emission canister – Disconnect battery earth lead.
  1. Release clip and hose from inlet manifold.
  2. Release hose from fuel tank vent pipe.
  3. Disconnect multiplug from purge valve.
  4. Release evaporative emission canister from mounting bracket.
  5. Remove evaporative emission canister.

Refit

  1. Fit evaporative emission canister to mounting bracket.
  2. Locate evaporative emission canister breather hose in subframe.
  3. Engage hose to fuel tank vent pipe.
  4. Engage hose to inlet manifold and secure with clip.
  5. Connect multiplug to purge valve.
  6. Connect battery earth lead.

CATALYTIC CONVERTER - ’K16’

Service repair no - 17.50.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

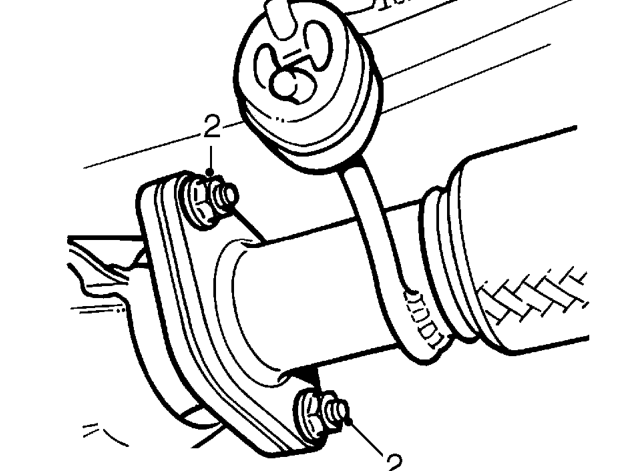

Catalytic converter - ’k16’ – Raise front of vehicle.
  1. Remove 2 nuts securing catalytic converter to front pipe.
