Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement05 · Engine - K16
05 · Engine

Engine and gearbox - models with air conditioning (page 7 of 11)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Engine - K16Engine and gearbox - models with air conditioning · page 7 of 11
Diagram

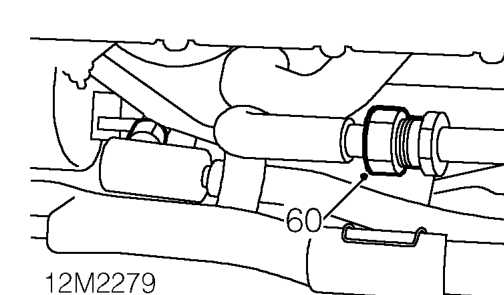

  1. Loosen union and disconnect compressor pipe from evaporator pipe.

CAUTION: To prevent damage to air conditioning pipes and components use two spanners when loosening or tightening unions.

  1. Remove and discard ’O’ ring from compressor pipe.

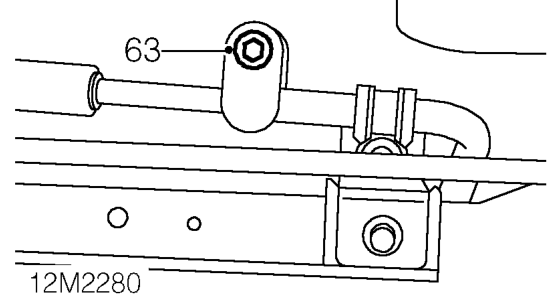

  2. Position evaporator pipe aside.
Position evaporator pipe aside.
  1. Remove bolt securing compressor pipe to condenser pipe.
  2. Release compressor pipe from condenser pipe and discard ’O’ ring.

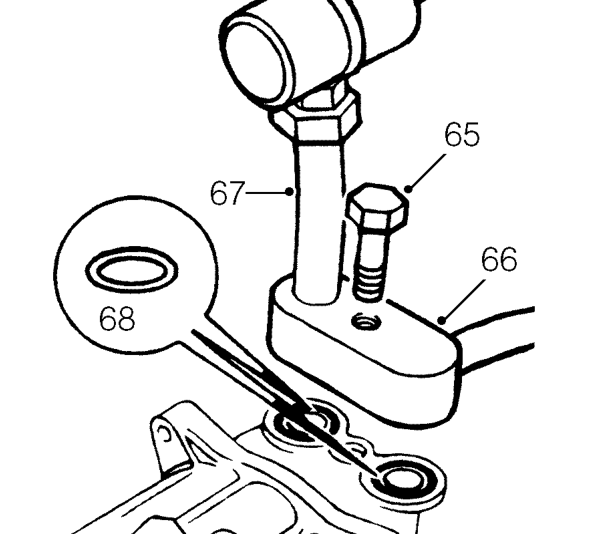

Release compressor pipe from condenser pipe and discard ’O’ ring.
  1. Remove bolt securing air conditioning pipe union to compressor.
  2. Release air conditioning pipe union from compressor.
  3. Remove air conditioning pipes.
  4. Remove and discard 2 ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes and compressor to prevent ingress of dirt and moisture into the system.

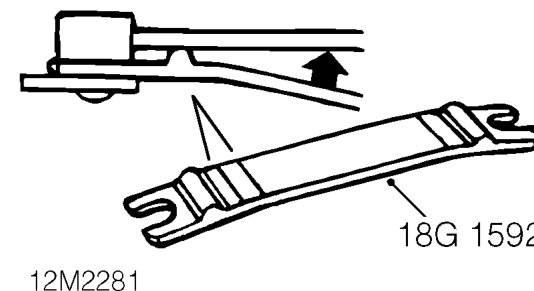

Remove and discard 2 ’O’ rings from compressor.
  1. Using tool 18G 1592 disconnect gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 disconnect gear change linkage ball joint from gear change lever.
