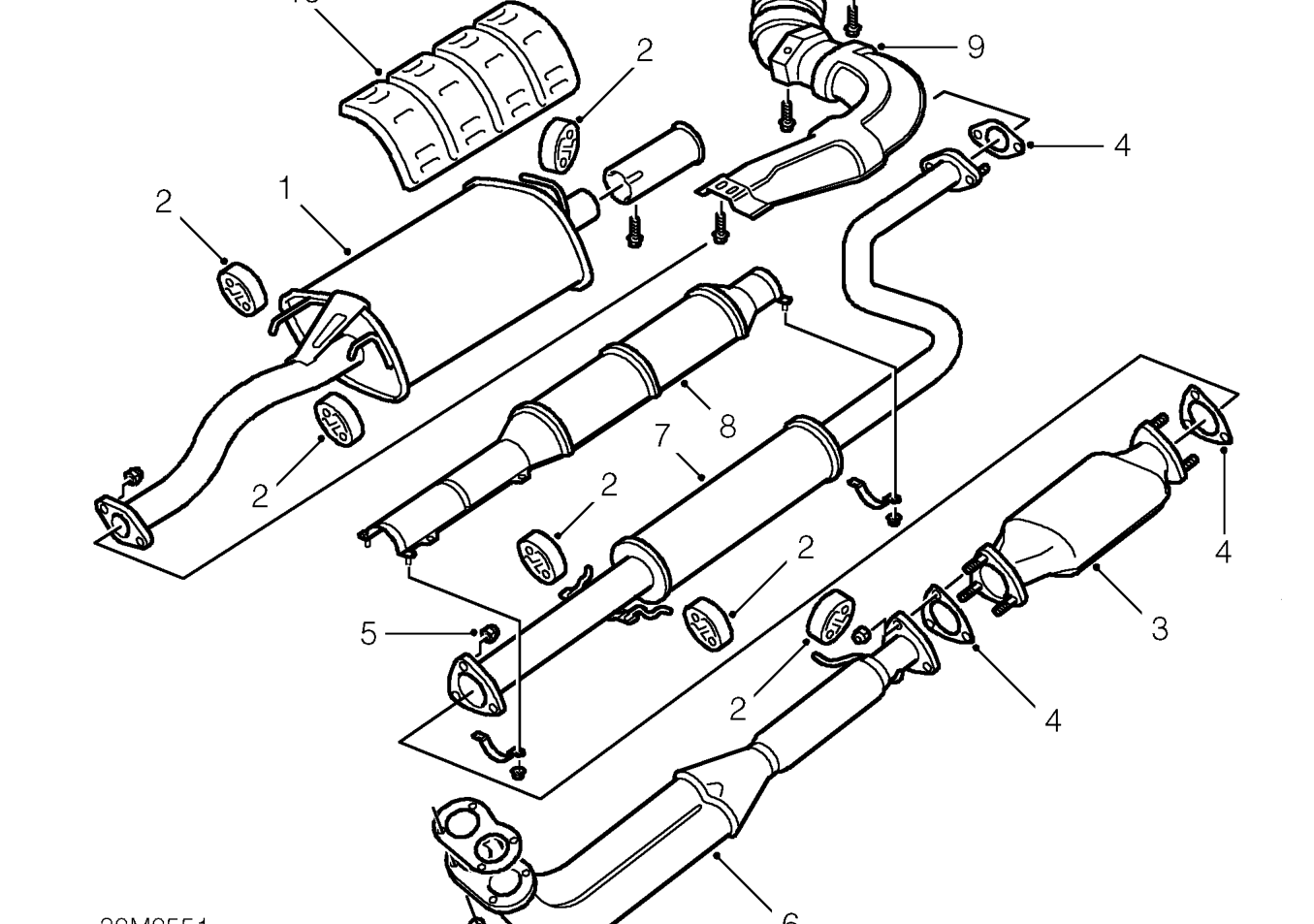

EXHAUST PIPE - ’K16 WITH VVC’

1. Exhaust tail pipe
2. Mounting rubber - 6 off
3. Catalytic converter
4. Gasket - pipe flange - 3 off
5. Flange nut
6. Exhaust front pipe
7. Exhaust intermediate pipe
8. Heat shield - intermediate pipe - front
9. Heat shield - intermediate pipe - rear
10. Heat shield - tail pipe
