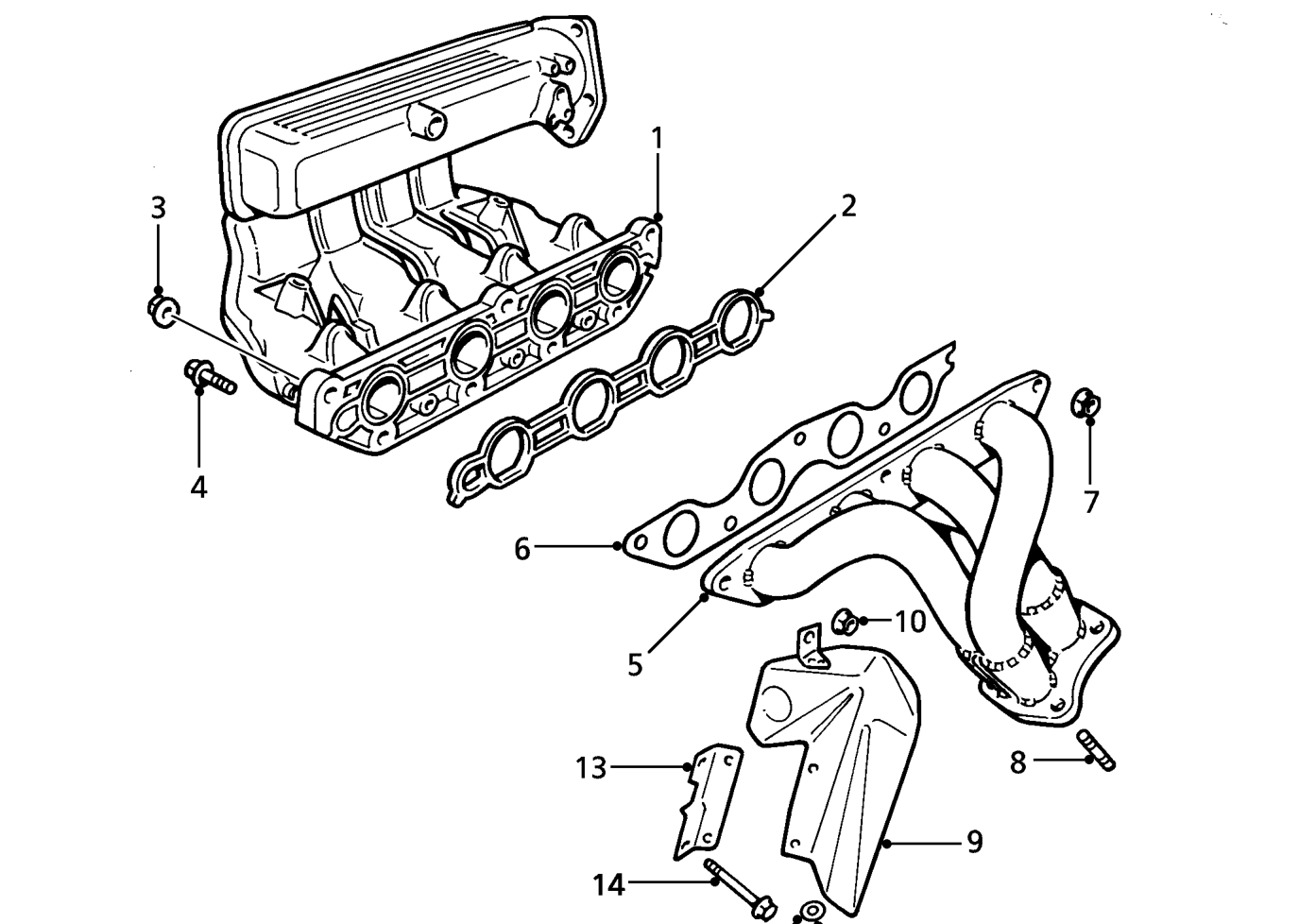

INLET AND EXHAUST MANIFOLD - ’K16’

1. Inlet manifold - plastic
2. Gasket - inlet manifold
3. Flange nut - inlet manifold - 3 off
4. Bolt - inlet manifold - 4 off
5. Exhaust manifold - fabricated
6. Gasket - exhaust manifold
7. Flange nut - 5 off
8. Stud - exhaust manifold flange - 4 off
9. Heat shield
10. Flange nut
11. Flange bolt
12. Plain washer
13. Mounting bracket
14. Flange bolt - 2 off - 2 tier mounting bracket
