Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement20 · Body
20 · Body & interior

Fascia (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Interior trim components
BodyFascia · page 2 of 3
Diagram

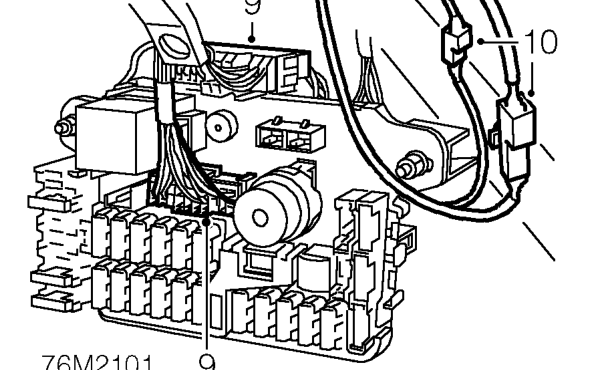

  1. Disconnect 2 fascia harness multiplugs from fuse box.
  2. Release multiplug from fascia rail and disconnect 2 fascia harness multiplugs.
Release multiplug from fascia rail and disconnect 2 fascia harness multiplugs.

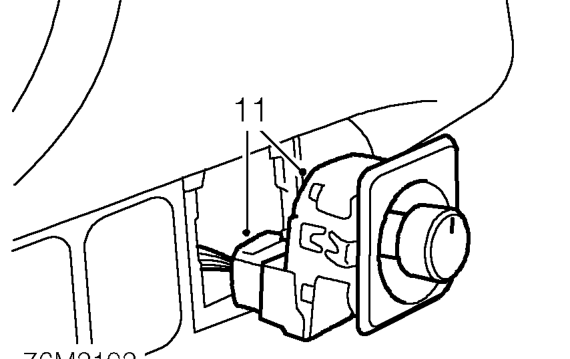

  1. Release mirror adjuster from fascia and disconnect multiplug.
  2. Remove steering column switch assembly. See ELECTRICAL, Repairs.
  3. Remove clock. See INSTRUMENTS, Repairs.
Remove clock. See INSTRUMENTS, Repairs.

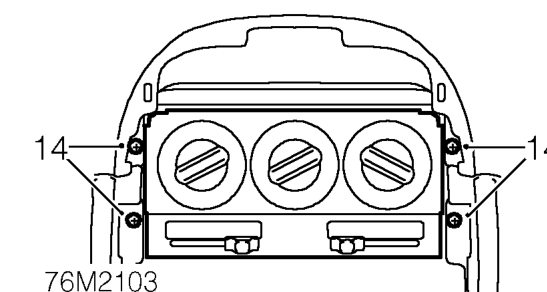

  1. Remove 4 screws securing heater controls to fascia.
Remove 4 screws securing heater controls to fascia.

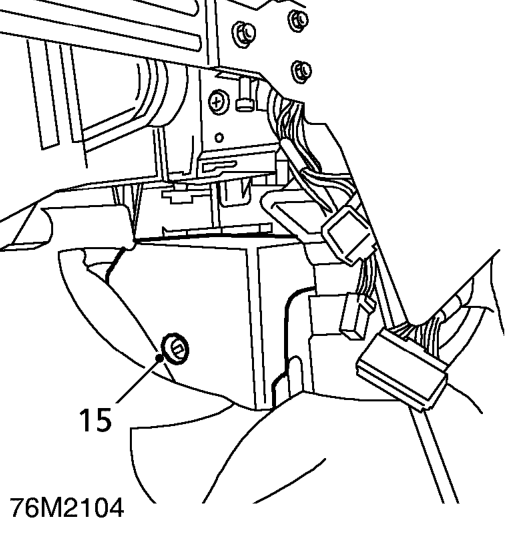

  1. Remove 2 scrivets securing cover to SRS control unit and remove cover.
