InstrumentsClock

CLOCK

Service repair no - 88.15.07

Remove

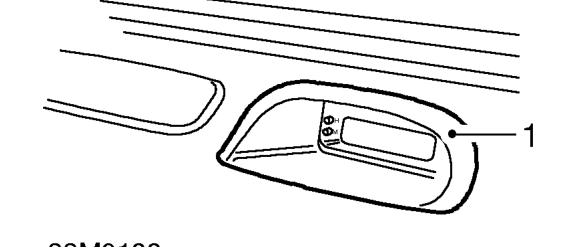

Clock – Service repair no - 88.15.07
  1. Remove clock finisher from fascia.

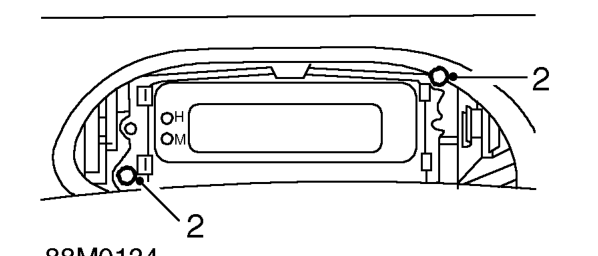

Clock – Remove clock finisher from fascia.
  1. Remove 2 screws securing clock to fascia.
  2. Position clock to gain access to multiplug.

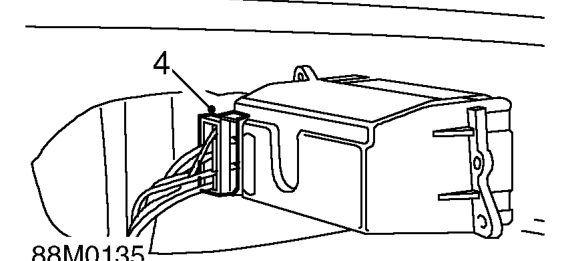

Clock – Position clock to gain access to multiplug.
  1. Disconnect multiplug from clock and remove clock.

Refit

  1. Position clock to fascia and connect multiplug.
  2. Fit and tighten screws securing clock to fascia.
  3. Fit finisher to fascia.

INSTRUMENT PACK

Service repair no - 88.20.01

Remove

  1. Disconnect battery earth lead.
  2. Release clamp and lower steering column.

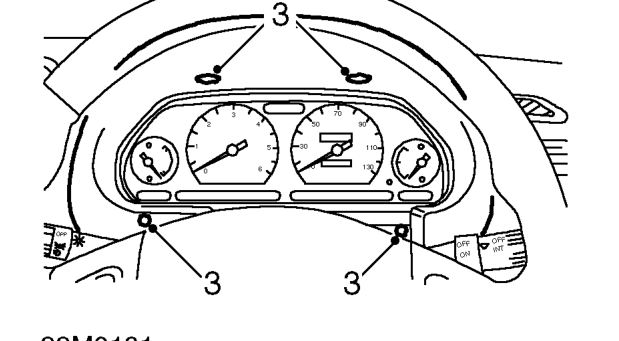

Instrument pack – Release clamp and lower steering column.
  1. Remove 4 screws securing instrument pack surround to fascia.
  2. Remove instrument pack surround.

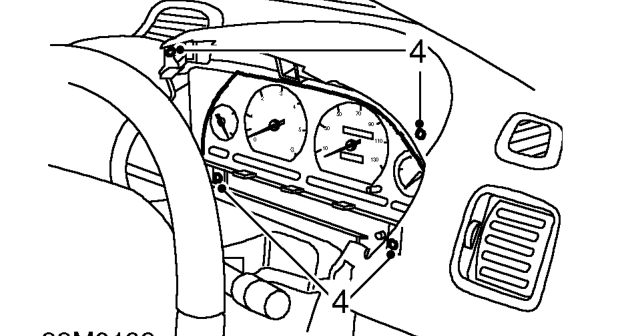

Instrument pack – Remove instrument pack surround.
  1. Remove 4 screws securing instrument pack to fascia.
  2. Position instrument pack to gain access to multiplugs.
