Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement25 · Instruments
25 · Electrical

Instrument panel window and face plate

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Instrument panel window and face plate
InstrumentsInstrument panel window and face plate

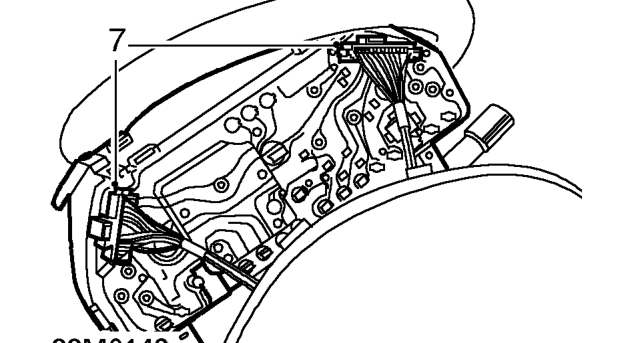

Diagram
  1. Disconnect 2 multiplugs from rear of instrument pack.
  2. Remove instrument pack.

Refit

  1. Position instrument pack in fascia and connect multiplugs.
  2. Fit and tighten screws securing instrument pack to fascia.
  3. Fit instrument pack surround to fascia and fit and tighten screws.
  4. Return steering wheel to original position and clamp.
  5. Connect battery earth lead.

INSTRUMENT PANEL WINDOW AND FACE PLATE

Service repair no - 88.20.06

Remove

  1. Remove instrument pack. See this section.

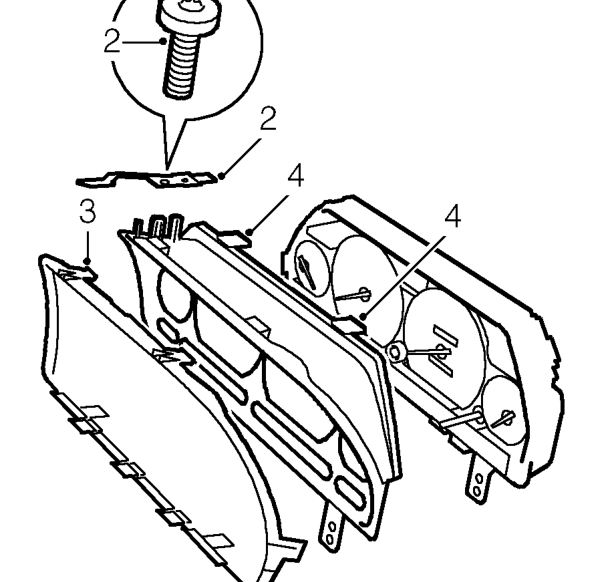

Instrument panel window and face plate – Remove instrument pack. See this section.
  1. Remove screws and support brackets from housing.
  2. Release 6 clips securing instrument panel window to housing and remove window.
  3. Release 4 clips securing face plate to housing and remove face plate.

Refit

  1. Fit face plate to housing.
  2. Fit window to housing.
  3. Fit support brackets and tighten screws.
  4. Fit instrument pack. See this section.
