Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement25 · Instruments
25 · Electrical

Tachometer

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Tachometer
InstrumentsTachometer

TACHOMETER

Service repair no - 88.30.21

Remove

  1. Remove instrument panel window and face plate. See this section.

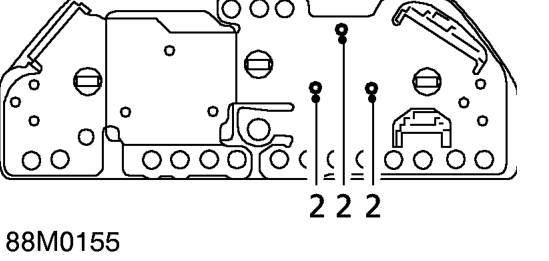

Tachometer – Remove instrument panel window and face plate. See this section.
  1. Remove 3 screws securing tachometer to instrument pack.
  2. Remove tachometer.

Refit

  1. Fit tachometer and secure with screws.
  2. Fit instrument panel window and face plate. See this section.
