Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement25 · Instruments
25 · Electrical

Fuel gauge

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Fuel gauge
InstrumentsFuel gauge

FUEL GAUGE

Service repair no - 88.25.26

Remove

  1. Remove instrument panel window and face plate. See this section.
Fuel gauge – Remove instrument panel window and face plate. See this section.
  1. Remove 3 screws securing fuel gauge to instrument pack.
  2. Remove fuel gauge.

Refit

  1. Fit fuel gauge and secure with screws.
  2. Fit instrument panel window and face plate. See this section.

SPEEDOMETER

Service repair no - 88.30.01

Remove

  1. Remove instrument panel window and face plate. See this section.

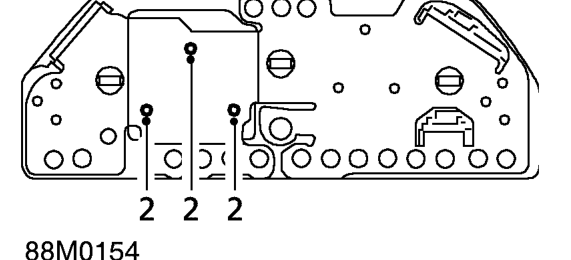

Speedometer – Remove instrument panel window and face plate. See this section.
  1. Remove 3 screws securing speedometer to instrument pack.
  2. Remove speedometer.

Refit

  1. Fit speedometer to instrument pack and secure with screws.
  2. Fit instrument panel window and face plate. See this section.
