Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement20 · Body
20 · Body & interior

Fascia (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Interior trim components
BodyFascia · page 3 of 3
Diagram

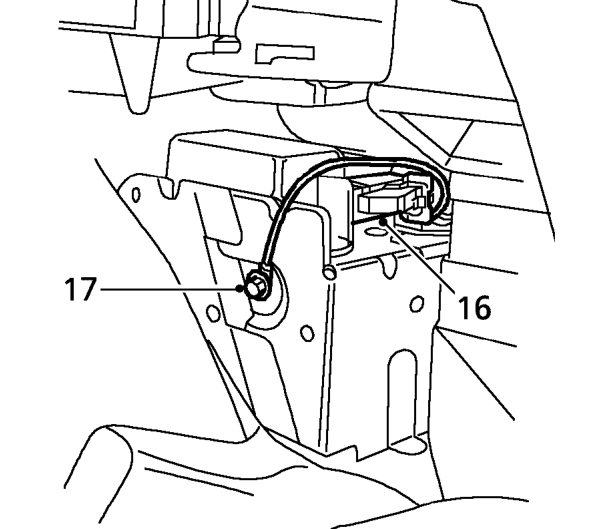

  1. Disconnect multiplug from SRS control unit.
  2. Remove bolt securing SRS harness earth strap to body.
  3. Position SRS control unit multiplug and earth strap to allow removal of fascia.
Position SRS control unit multiplug and earth strap to allow removal of fascia.

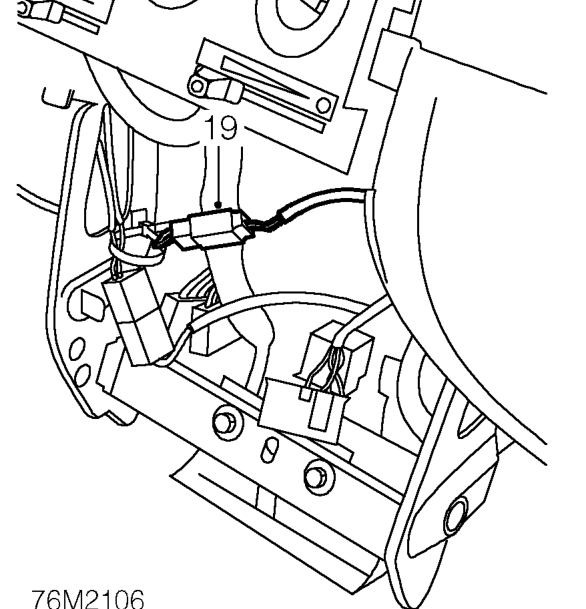

  1. Disconnect multiplug from SRS harness and position aside.
Disconnect multiplug from SRS harness and position aside.

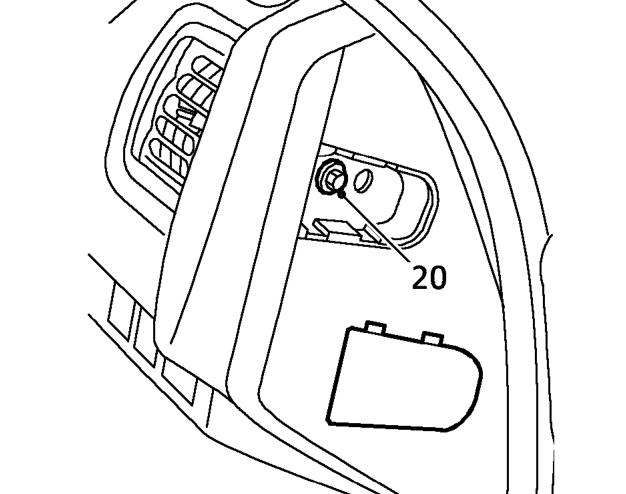

  1. Remove retaining bolt covers from end of fascia panel and remove 2 bolts securing fascia to brackets.
