  1. Disconnect multiplug from dim-dip resistor.

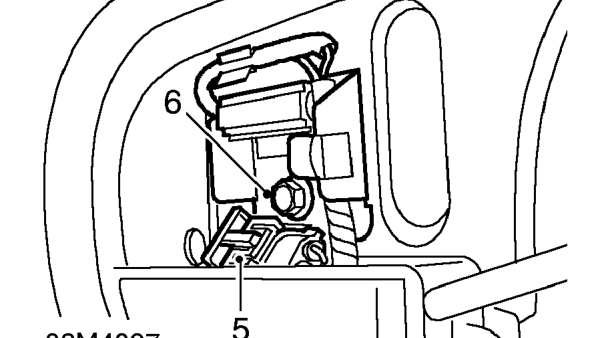

  2. Remove bolt securing dim-dip resistor to body.
  3. Remove dim-dip resistor.

Refit

  1. Position dim-dip resistor to body and secure with bolt. Tighten bolt to 8 Nm.
  2. Connect multiplug to dim-dip resistor.
  3. Models with front fog lights: Fit LH front fog light. See this section.

Models without front fog lights

  1. Align wheel arch liner to front bumper and secure with screws.
  2. Remove stand(s) and lower vehicle.

INTEGRATED CIRCUIT UNIT (ICU)

Service repair no - 86.55.93

NOTE: The control unit directly affects the following functions:

Front and rear wipers Courtesy lamp delay Lights on alarm Heated rear screen Horn Dim-dip Rear fog guard lamps Engine immobilisation Catalyst overheat Electric windows Sun roof

Remove

  1. Disconnect battery earth lead.

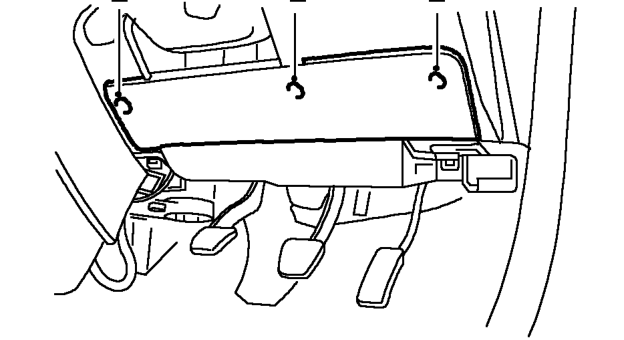

Integrated circuit unit (icu) – Disconnect battery earth lead.
  1. Release 3 turnbuckles and remove passenger compartment fuse box cover.

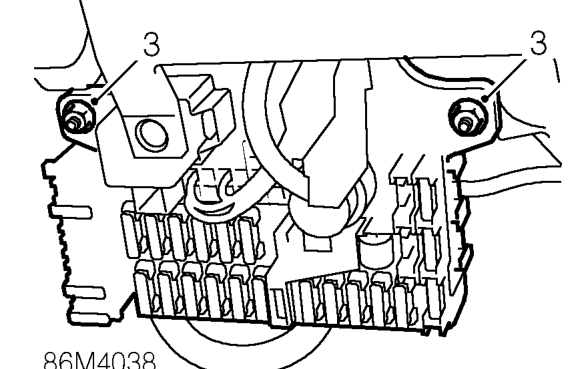

Integrated circuit unit (icu) – Release 3 turnbuckles and remove passenger compartment fuse box cover.
  1. Remove 2 nuts securing passenger compartment fuse box to brackets and release fuse box.
