ElectricalStarter motor - automatic gearbox · page 1 of 2

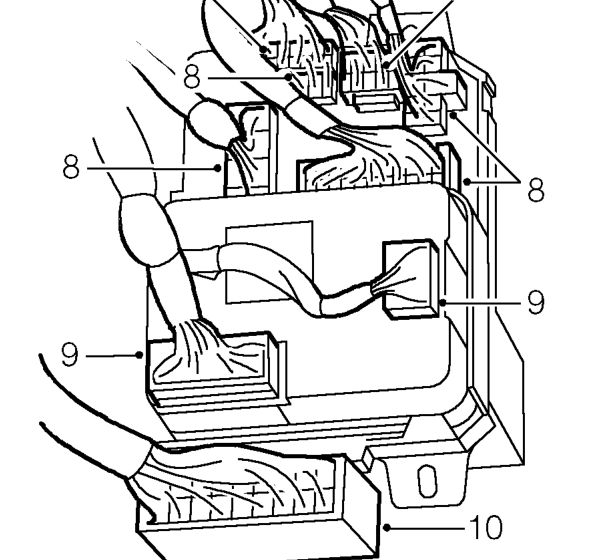

Diagram
  1. Disconnect 6 multiplugs from rear of fuse box.
  2. Disconnect 2 multiplugs from ICU.
  3. Release satalite fuse box from main fuse box.
  4. Remove passenger compartment fuse box.

Refit

  1. Position passenger compartment fuse box and secure satalite fuse box to it.
  2. Connect multiplugs to ICU.
  3. Connect multiplugs to rear of fuse box.
  4. Position fuse box on mounting bracket and secure with nuts.
  5. Connect SRS multiplug to fuse box.
  6. Connect starter switch multiplugs to fuse box.
  7. Secure multiplug to top of fuse box.
  8. Fit fuse box cover and secure with turnbuckles.
  9. Connect battery earth lead.

STARTER MOTOR - AUTOMATIC GEARBOX

Service repair no - 86.60.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Starter motor - automatic gearbox – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

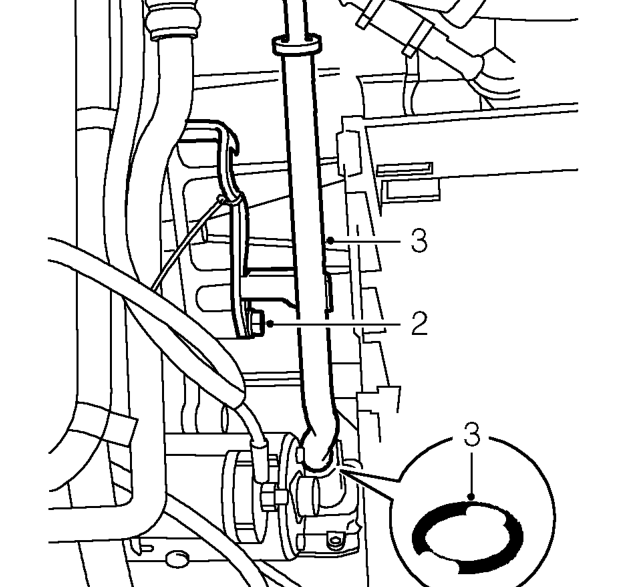

  1. Remove bolt securing dipstick tube to gearbox.
  2. Remove dipstick tube from gearbox and collect ’O’ ring.
Starter motor - automatic gearbox – Remove dipstick tube from gearbox and collect ’O’ ring.

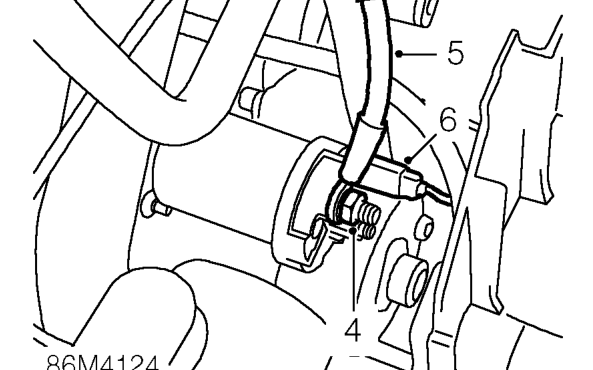

  1. Remove nut securing positive battery lead to starter solenoid.
  2. Release lead from solenoid and collect spring washer.
  3. Disconnect Lucar from solenoid.
