STARTER SOLENOID - ’K16’

Service repair no - 86.60.08

Remove

  1. Disconnect battery earth lead.
  2. Remove starter motor. See this section.

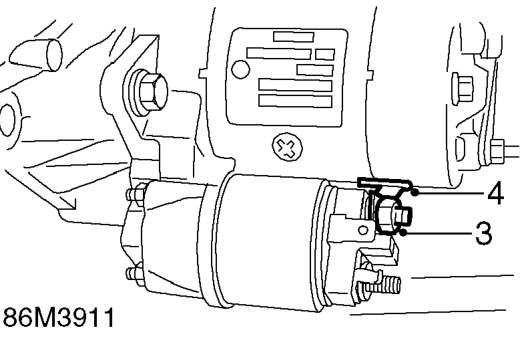

Starter solenoid - ’k16’ – Remove starter motor. See this section.
  1. Remove nut securing starter motor cable to solenoid.
  2. Disconnect starter motor cable from starter solenoid.

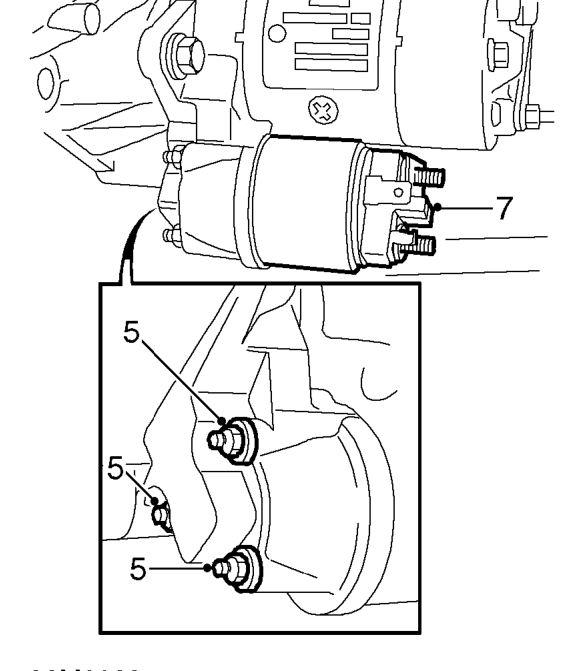

Starter solenoid - ’k16’ – Disconnect starter motor cable from starter solenoid.
  1. Remove 3 nuts securing starter solenoid to starter motor.
  2. Release solenoid operating plunger from starter lever.
  3. Remove starter solenoid.

Refit

  1. Clean starter solenoid and mating face of starter motor.
  2. Lubricate solenoid operating plunger
  3. Position starter solenoid to starter motor and engage solenoid operating plunger to starter lever.
  4. Fit starter solenoid to starter motor and secure with nuts.
  5. Connect starter motor cable to starter solenoid and secure with nut.
  6. Fit starter motor. See this section.
  7. Connect battery earth lead.
