Repairs › Dim-dip relay
ElectricalDim-dip relay

DIM-DIP RELAY

Service repair no - 86.55.91

Remove

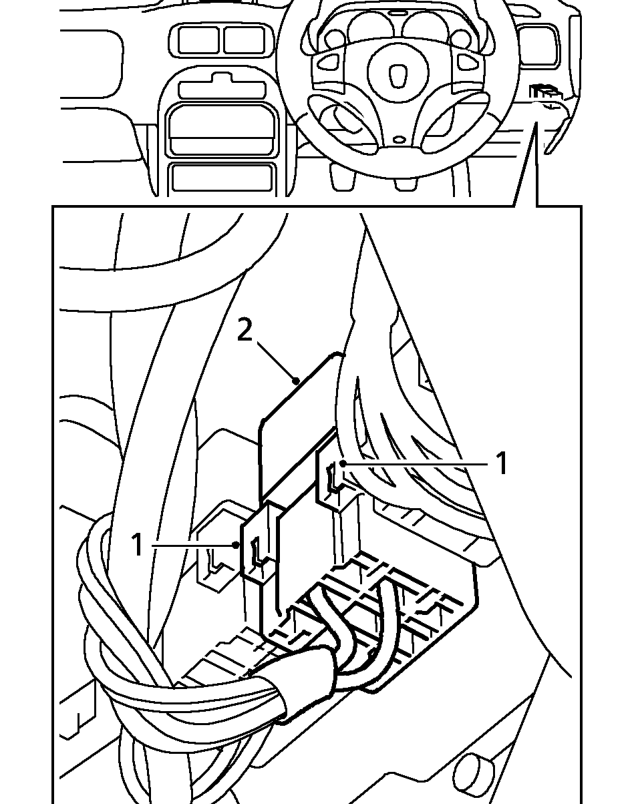

Dim-dip relay – Service repair no - 86.55.91
  1. Release 2 clips securing dim-dip relay to harness.
  2. Remove relay.

Refit

  1. Fit relay to harness and engage to clips.

DIM-DIP RESISTOR

Service repair no - 86.55.92

Remove

  1. Models with front fog lights: Remove LH front fog light. See this section.

Models without front fog lights

  1. Raise front of vehicle.

WARNING: Support on safety stands.

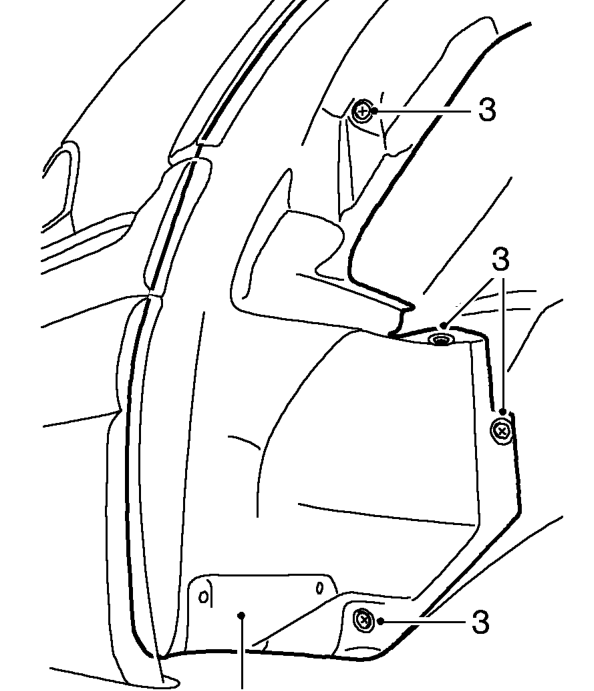

Models without front fog lights – Raise front of vehicle.
  1. Remove 4 screws securing LH wheel arch liner to front bumper.
  2. Release wheel arch liner from front bumper.
