FLASHER UNIT

Service repair no - 86.55.68

Remove

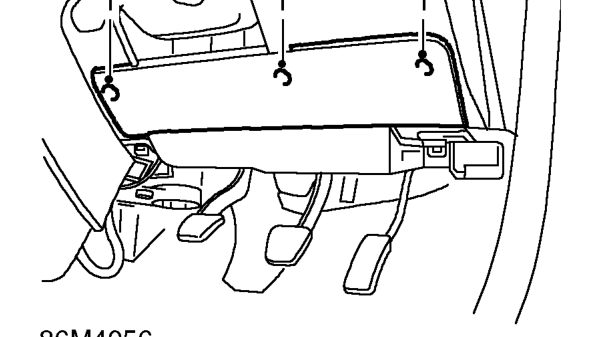

Flasher unit – Service repair no - 86.55.68
  1. Release 3 turnbuckles and remove passenger compartment fuse box cover.
Flasher unit – Release 3 turnbuckles and remove passenger compartment fuse box cover.

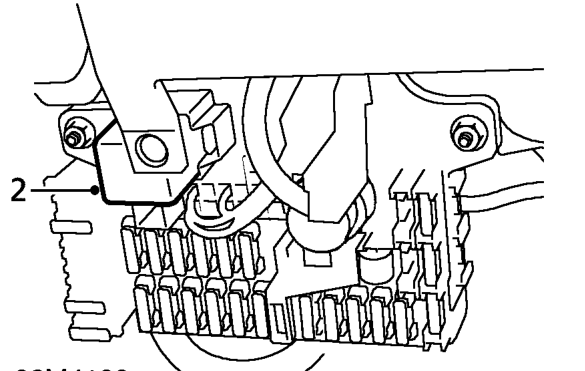

  1. Remove flasher unit from passenger compartment fuse box.

Refit

  1. Fit flasher unit to fuse box.
  2. Fit fuse box cover and secure with turnbuckles.

ANTI-THEFT ALARM ECU

Service repair no - 86.55.85

Remove

  1. Disconnect battery earth lead.
Anti-theft alarm ecu – Disconnect battery earth lead.

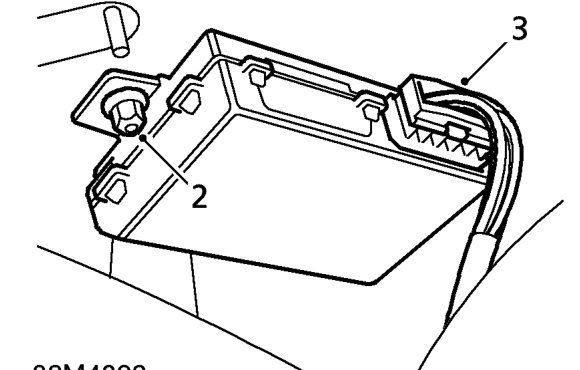

  1. Remove 2 nuts securing anti theft alarm ECU to body and release ECU.
  2. Disconnect multiplug from anti-theft alarm ECU.

Refit

  1. Connect multiplug to anti-theft alarm ECU.
  2. Position anti-theft alarm ECU to body and secure with nuts.
  3. Connect battery earth lead.

NOTE: If a new anti-theft alarm ECU has been fitted, the ECM will need to be reprogrammed with TestBook.
