INDICATOR/HEADLAMP SWITCH

Service repair no - 86.65.55

Remove

  1. Remove rotary coupler. See this section.

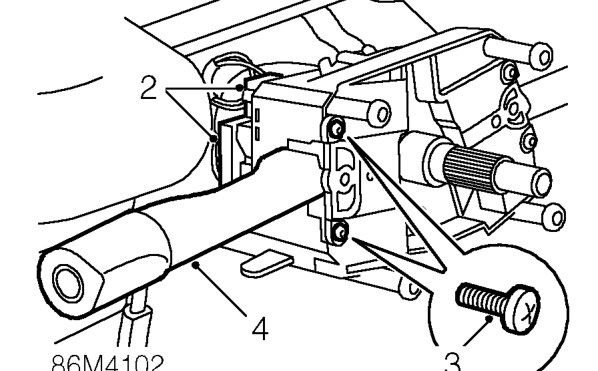

Indicator/headlamp switch – Remove rotary coupler. See this section.
  1. Disconnect 2 multiplugs from indicator/ headlamp switch.
  2. Remove 2 screws securing indicator/ headlamp switch to switch pack.
  3. Depress retaining tag and remove switch assembly.

Refit

  1. Fit indicator/headlamp switch assembly and secure with screws.
  2. Connect multiplugs.
  3. Fit rotary coupler. See this section.

STEERING COLUMN SWITCH ASSEMBLY

Service repair no - 86.65.64

Remove

  1. Remove rotary coupler. See this section.

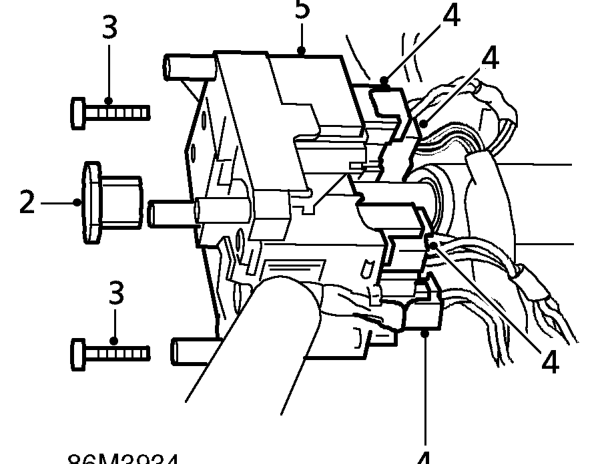

Steering column switch assembly – Remove rotary coupler. See this section.
  1. Remove indicator cancelling cam from column.
  2. Remove 2 screws securing switch assembly to steering column.
  3. Release switch assembly from column and disconnect 4 multiplugs.
  4. Remove switch assembly. Do not carry out further dismantling if component is removed for access only.

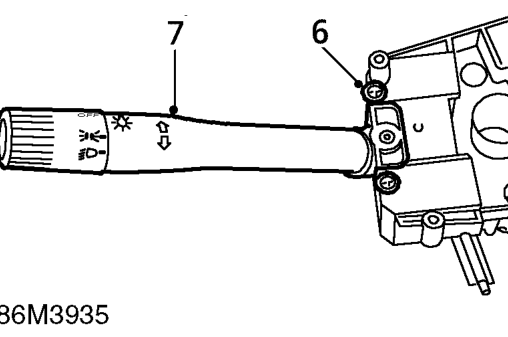

Steering column switch assembly – Remove switch assembly. Do not carry out further dismantling if component is removed for a
  1. Remove 2 screws securing direction indicator/headlamp stalk to switch assembly.
  2. Remove direction indicator/headlamp stalk from switch assembly.
