ElectricalRear fog light switch
Diagram

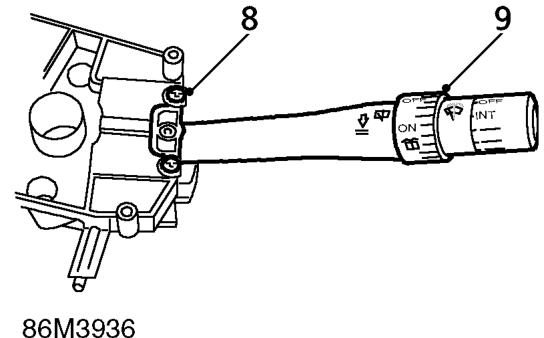

  1. Remove 2 screws securing wash/wipe stalk to switch assembly.
  2. Remove wash/wipe stalk from switch assembly.
  3. Fit wash/wipe stalk to switch assembly and secure with screws.
  4. Fit direction indicator/headlamp stalk to switch assembly and secure with screws.

Refit

  1. Position switch assembly to steering column, connect multiplugs and tighten retaining screws.
  2. Fit direction indicator cancelling cam to steering column.
  3. Fit rotary coupler. See this section.

REAR FOG LIGHT SWITCH

Service repair no - 86.65.65

Remove

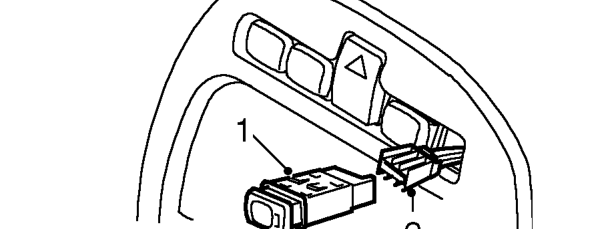

Rear fog light switch – Service repair no - 86.65.65
  1. Release rear fog light switch from centre console.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to centre console and connect multiplug.
  2. Fit switch to centre console.
