Door mirror switch

DOOR MIRROR SWITCH

Service repair no - 86.65.75

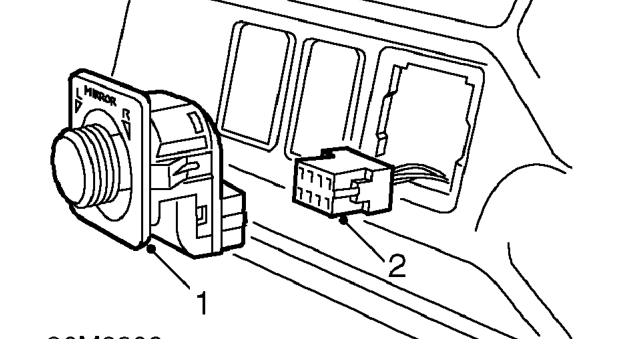

Remove

1. Release door mirror switch from fascia.
2. Disconnect multiplug from rear of switch.
3. Remove switch.

Refit

1. Position switch to fascia and connect multiplug.
2. Fit switch to fascia.

ROTARY COUPLER

Service repair no - 86.65.85

CAUTION: See SRS safety precautions before commencement of repair. See RESTRAINT SYSTEMS, Precautions. • Ensure wheels are aligned straight ahead.

Remove

1. Remove key from starter switch and wait 10 minutes to allow the SRS back-up power circuit to discharge before commencing work.
2. Disconnect both battery leads, earth lead first.
3. Remove steering wheel. See STEERING, Repairs.
4. Remove steering column nacelle. See STEERING, Repairs.

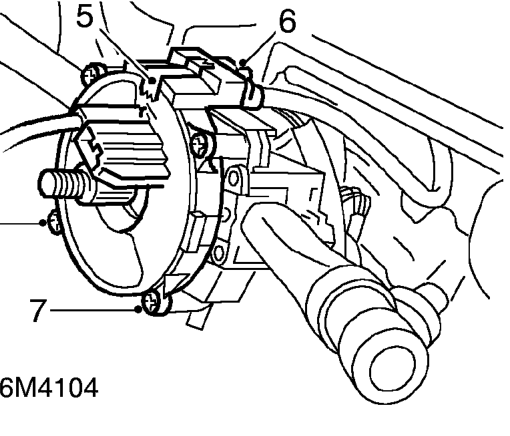

5. If the rotary coupler is being re-used place adhesive tape around moulding to prevent rotation.
6. Disconnect 2 multiplugs from rotary coupler.
7. Remove 4 screws and remove rotary coupler.

CAUTION: Do not dismantle the rotary coupler, It has no serviceable parts and must be replaced as a complete assembly.

Refit

1. Fit rotary coupler and secure with screws.
2. Connect multiplugs to coupler.
3. Remove retaining tape from rotary coupler.
4. Fit steering column nacelle. See STEERING, Repairs.
5. Fit steering wheel. See STEERING, Repairs.
