Steering column nacelle

Refit

1. Position column assembly, engage universal joint splines aligning the bolt hole with the flat on the shaft and fit bolt securing column to universal joint, DO NOT tighten.
2. Raise column and engage top bracket on studs and fit nuts and bolts. DO NOT tighten.
3. Fit lower clamp, and tighten nut and bolt to 22 Nm.
4. Tighten top bracket nuts and bolts to 15 Nm.
5. Tighten universal joint bolt to 28 Nm.
6. Position universal joint cover and fit cover retaining clips and studs.
7. Refit drivers footwell carpet.
8. Connect starter switch multiplugs.
9. Fit steering column switch assembly. See ELECTRICAL, Repairs.

STEERING COLUMN NACELLE

Service repair no - 57.40.29

Remove

1. Remove key from starter switch.

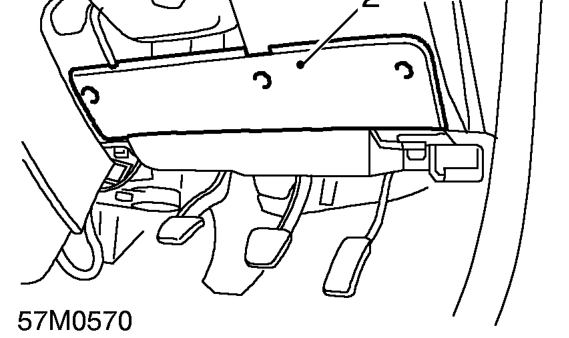

2. Release 3 turnbuckles and remove fusebox cover.

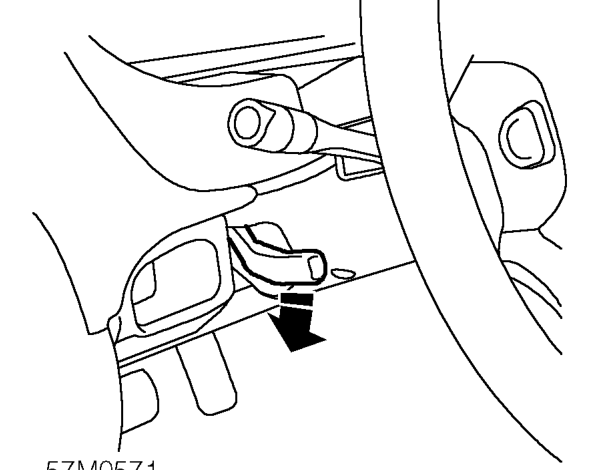

3. Release steering column clamp and lower steering column.
