Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Steering lock

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Steering lock
SteeringSteering lock · page 1 of 2
Diagram

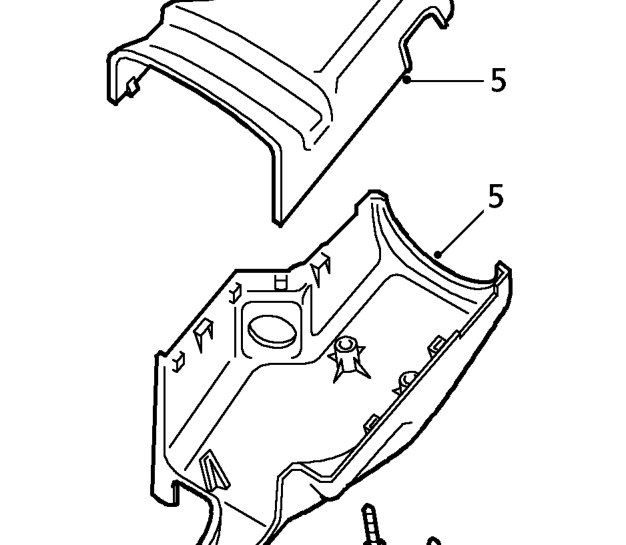

  1. Remove 3 screws securing lower half of nacelle to steering column.
  2. Remove upper and lower halves of nacelle.

Refit

  1. Fit lower and upper halves of nacelle to steering column.
  2. Fit and tighten screws securing lower half of nacelle to steering column.
  3. Position steering column to original height and secure with clamp.
  4. Fit fusebox cover and secure turnbuckles.

STEERING LOCK

Service repair no - 57.40.31

Remove

WARNING: SRS procedures must be followed and all precautions observed. See RESTRAINT SYSTEMS, Precautions.

  1. Remove steering column nacelle. See this section.
Steering lock – Remove steering column nacelle. See this section.

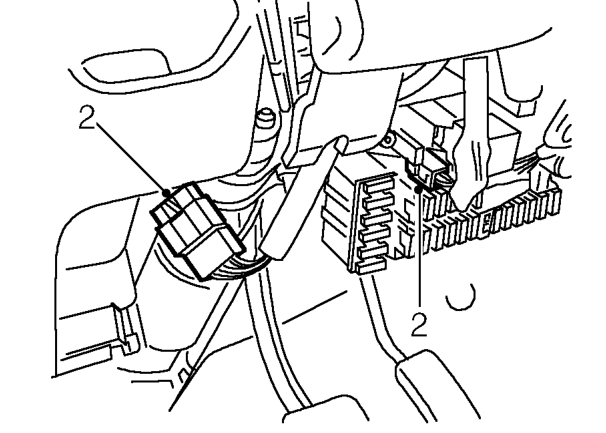

  1. Disconnect 2 starter switch multiplugs from fuse box and main harness.
