Steering lock (page 2 of 2)

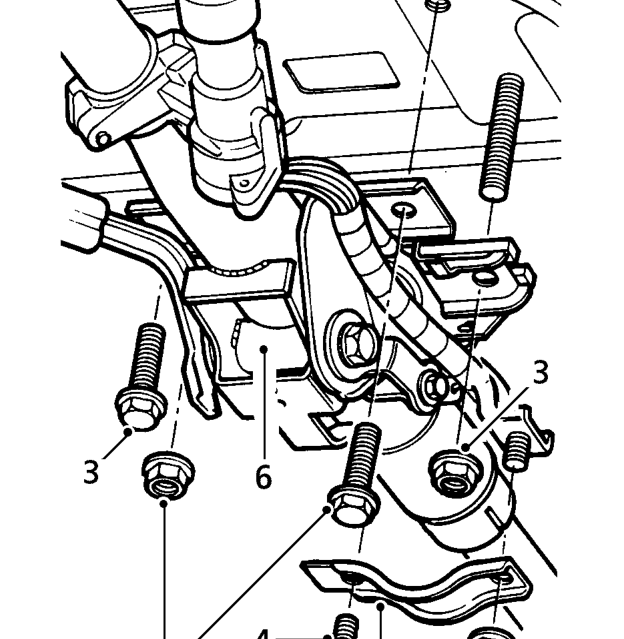

3. Remove 2 flange nuts and 2 bolts securing steering column upper bracket to body.
4. Remove nut and bolt securing lower column clamp to pivot bracket.
5. Remove clamp.
6. Lower the steering column assembly.

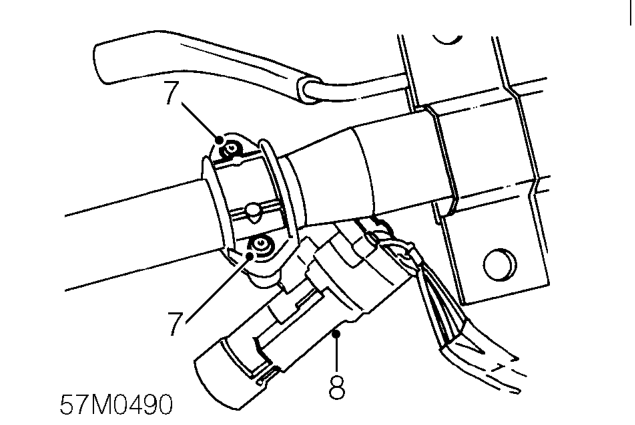

7. Centre punch and drill out 2 shear bolts using a 5 mm drill.

CAUTION: Take care not to damage lock body if lock is to be refitted.

8. Remove steering lock and bracket.

Refit

1. Position steering lock to column and fit shear bolts loosely.
2. Insert starter key, check operation of steering lock and key turns freely.
3. Tighten shear bolts until heads shear off.
4. Raise column and engage top bracket to studs. Fit nuts and bolts but DO NOT tighten.
5. Fit lower clamp, tighten nut and bolt to 22 Nm.
6. Tighten top bracket nuts and bolts to 15 Nm.
7. Connect starter switch multiplugs to fuse box and main harness.
8. Fit steering column nacelle. See this section.
