Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Power steering pump

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Power steering pump
SteeringPower steering pump

POWER STEERING PUMP

Service repair no - 57.20.14

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove power steering pump drive belt. See this section.
  2. Position container to collect fluid loss.

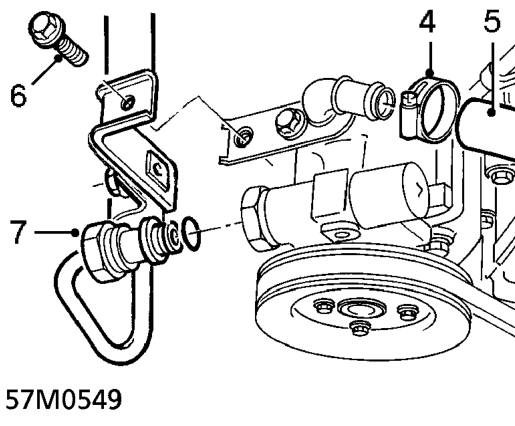

Power steering pump – Position container to collect fluid loss.
  1. Loosen clip securing fluid inlet hose to power steering pump.
  2. Disconnect fluid inlet hose from power steering pump.
  3. Remove bolt securing fluid outlet hose clamp to bracket.
  4. Loosen union and release fluid outlet hose from power steering pump.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

  1. Plug hose and power steering pump connections to prevent excess fluid loss and the ingress of dirt and moisture into the system.

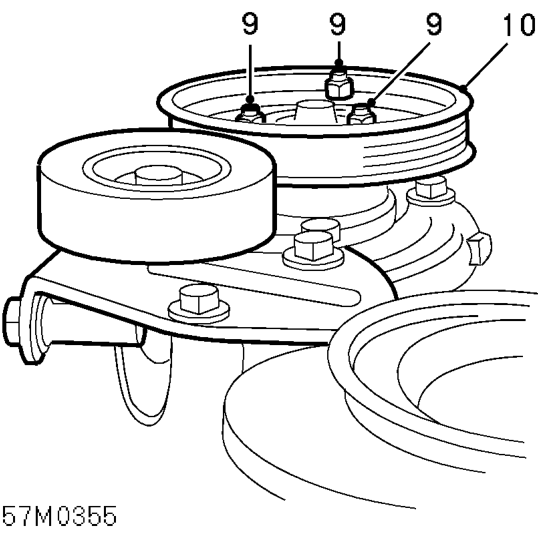

Power steering pump – Plug hose and power steering pump connections to prevent excess fluid loss and the ingress
  1. Remove 3 bolts securing pulley to power steering pump.
  2. Remove power steering pump pulley.

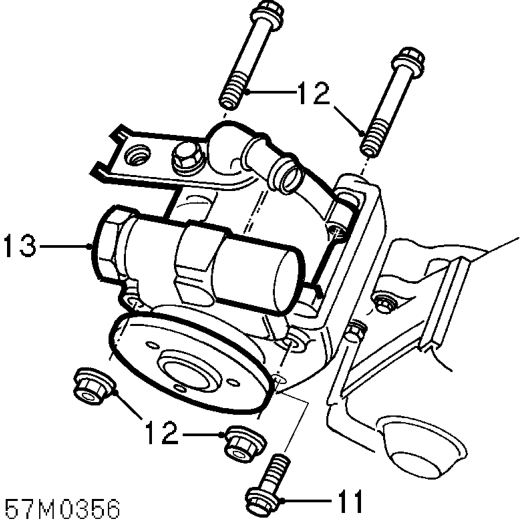

Power steering pump – Remove power steering pump pulley.
  1. Remove bolt securing power steering pump to mounting bracket.
  2. Remove 2 through bolts and nuts securing power steering pump to mounting bracket.
  3. Remove power steering pump.
