STARTER SWITCH

Service repair no - 86.65.03

Remove

CAUTION: See SRS safety precautions before commencement of repair. See RESTRAINT SYSTEMS, Precautions.

  1. Remove steering column nacelle. See STEERING, Repairs.
Starter switch – Remove steering column nacelle. See STEERING, Repairs.

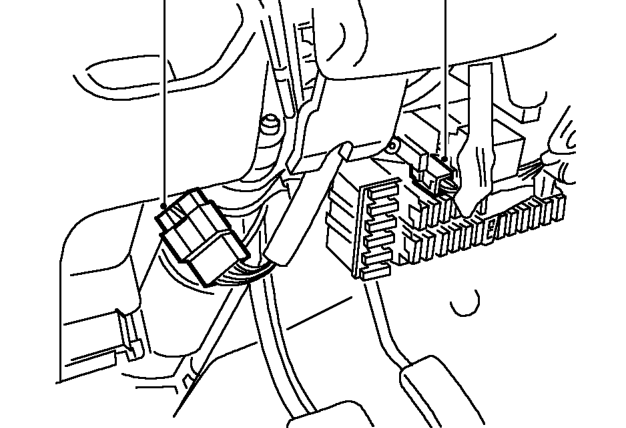

  1. Disconnect starter switch multiplugs from fuse box and main harness.
Starter switch – Disconnect starter switch multiplugs from fuse box and main harness.

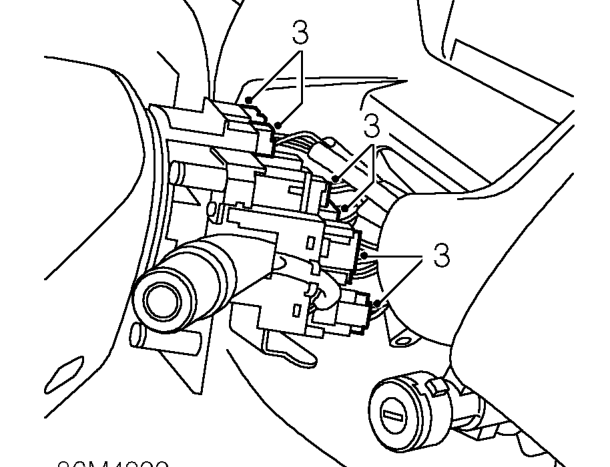

  1. Disconnect 6 multiplugs from steering column switch assembly and rotary coupler.
Starter switch – Disconnect 6 multiplugs from steering column switch assembly and rotary coupler.

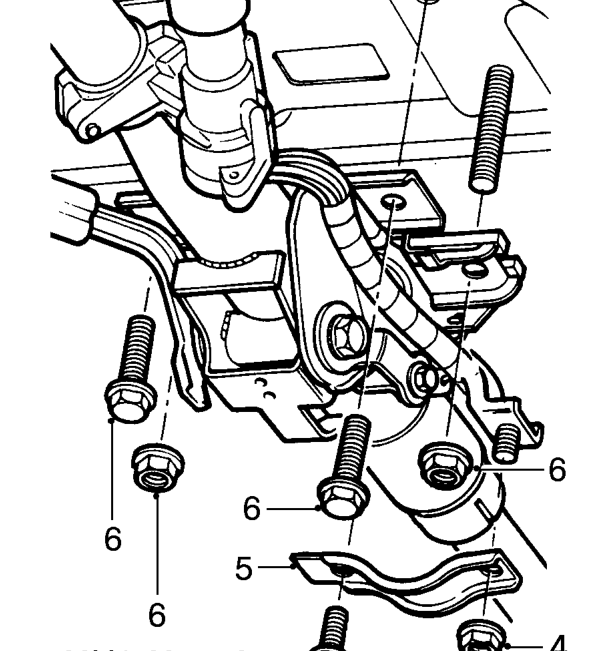

  1. Remove nut and bolt securing lower column clamp to pivot bracket.
  2. Remove clamp.
  3. Remove 2 flange nuts and 2 bolts securing column upper bracket to body.
  4. Lower the steering column assembly.
