Auxiliary drive belt - models without air conditioning

Refit

1. Position alternator in vehicle.
2. Connect 2 cables to alternator and secure with nuts.
3. Position alternator top mounting bracket
4. Fit bolt securing alternator top mounting bracket to engine and tighten to 25 Nm.
5. Tighten nut securing alternator top mounting bracket to engine to 25 Nm .
6. Manoeuvre alternator onto mounting brackets.
7. Fit 2 through bolts securing alternator to mounting brackets, fit 2 nuts and tighten to 45 Nm.
8. Connect drive belt to alternator pulley Ensure grooves on drive belt and pulleys are correctly located.
9. Adjust drive belt tension. See Adjustments.
10. Remove stand(s) and lower vehicle.
11. Connect battery earth lead.

AUXILIARY DRIVE BELT - MODELS WITHOUT AIR CONDITIONING

Service repair no - 86.10.03.10

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove power steering pump drive belt. See STEERING, Repairs.

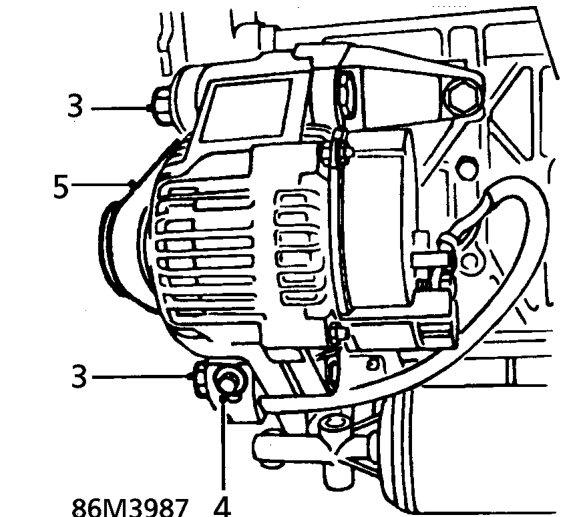

3. Loosen 2 alternator mounting bolts.
4. Release drive belt tension by turning the tension adjusting bolt anti-clockwise.
5. Release drive belt from alternator pulley.
6. Remove and discard drive belt.

Refit

1. Clean pulley ’V’s.
2. Fit new drive belt to crankshaft pulley and connect to alternator pulley. Ensure grooves on pulleys and drive belt are correctly located.
3. Adjust drive belt tension. See Adjustments.
4. Fit and adjust power steering pump drive belt. See STEERING, Adjustments.
5. Remove stand(s) and lower vehicle.
