AUXILIARY DRIVE BELT - MODELS WITHOUT AIR CONDITIONING

Service repair no - 86.10.05

Check

  1. Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.
Auxiliary drive belt - models without air conditioning – Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.

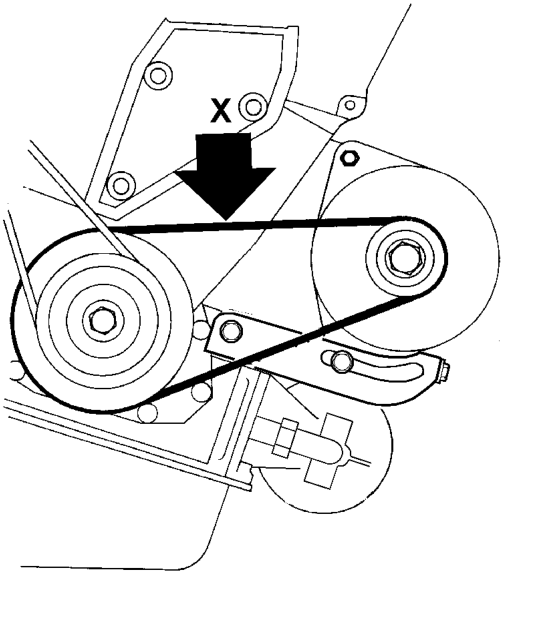

  1. Apply a force of 10 kg to the drive belt at position ’X’ and measure the deflection between the crankshaft pulley and alternator pulley. Deflection must be 6 - 8 mm.

Adjust

Auxiliary drive belt - models without air conditioning – Apply a force of 10 kg to the drive belt at position ’X’ and measure the deflection betwee

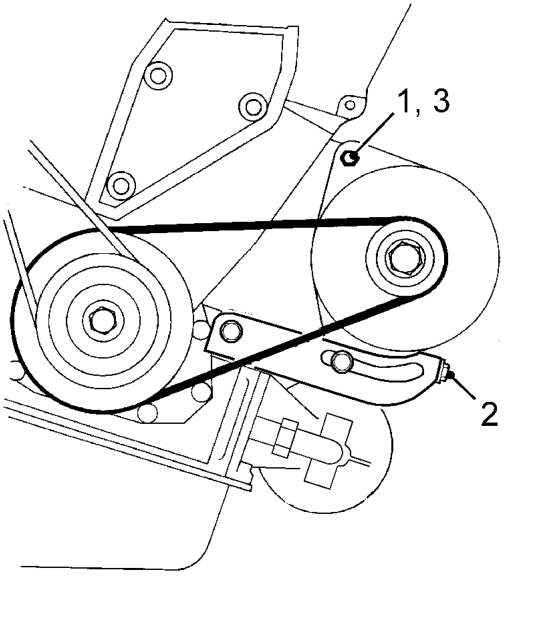

  1. Loosen 2 alternator mounting bolts.
  2. Increase drive belt tension by turning the tension adjusting bolt clockwise.
  3. Tighten alternator mounting bolts to 25 Nm.
  4. Recheck drive belt tension.
