Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement24 · Electrical
24 · Electrical

Radio

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Radio
ElectricalRadio

RADIO

Service repair no - 86.50.03

Remove

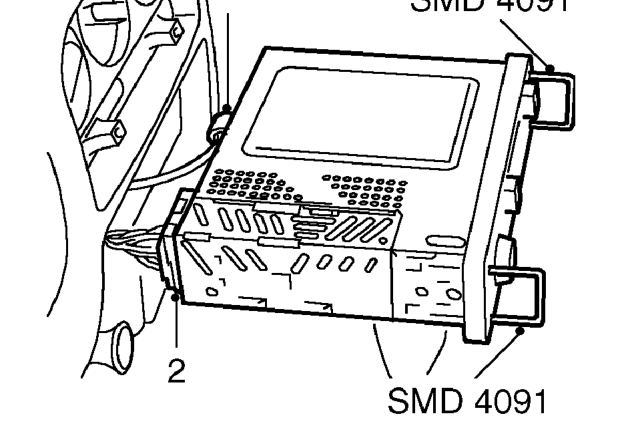

Radio – Service repair no - 86.50.03
  1. Fit radio removal tools SMD 4091 to release retaining clips. Pull on tool to release radio from fascia.
  2. Disconnect 3 multiplugs and aerial lead. Remove radio.
  3. Remove tool SMD 4091 .

Refit

  1. Position radio to aperture. Connect multiplugs and aerial lead.
  2. Slide radio into fascia until retaining clips engage.
  3. Enter security code and check radio for correct operation.

REMOTE I.C.E. CONTROLS

Service repair no - 86.50.13

Remove

  1. Disconnect battery earth lead.
  2. Remove both horn switches. See this section.

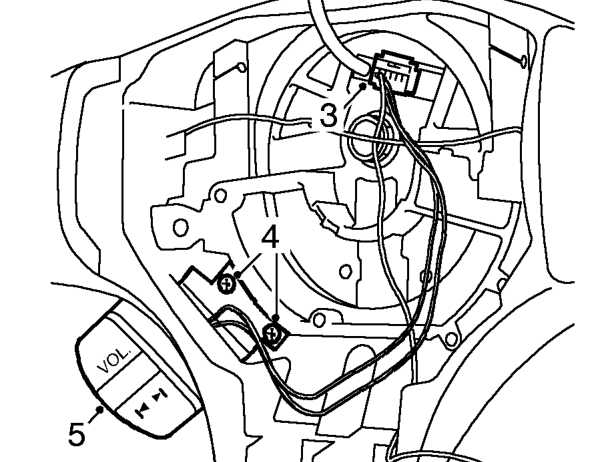

Remote i.c.e. controls – Remove both horn switches. See this section.
  1. Release multiplug from rotary coupler.
  2. Remove 2 screws securing remote controls to steering wheel.
  3. Release remote controls from steering wheel.
  4. Remove controls and harness from steering wheel.

Refit

  1. Fit harness to steering wheel and secure remote controls to steering wheel.
  2. Fit and tighten screws securing controls to steering wheel.
  3. Connect multiplug to rotary coupler.
  4. Fit both horn switches. See this section.
  5. Connect battery earth lead.
